This page is still under construction, I am using it as my
online notebook. It's time to finalize and sort the content on this page, but ...! ;-)
To Do
Icom IC-9700 2m/70cm/23cm-Band ALL MODE TRANSCEIVER
SSTV und IC-9700

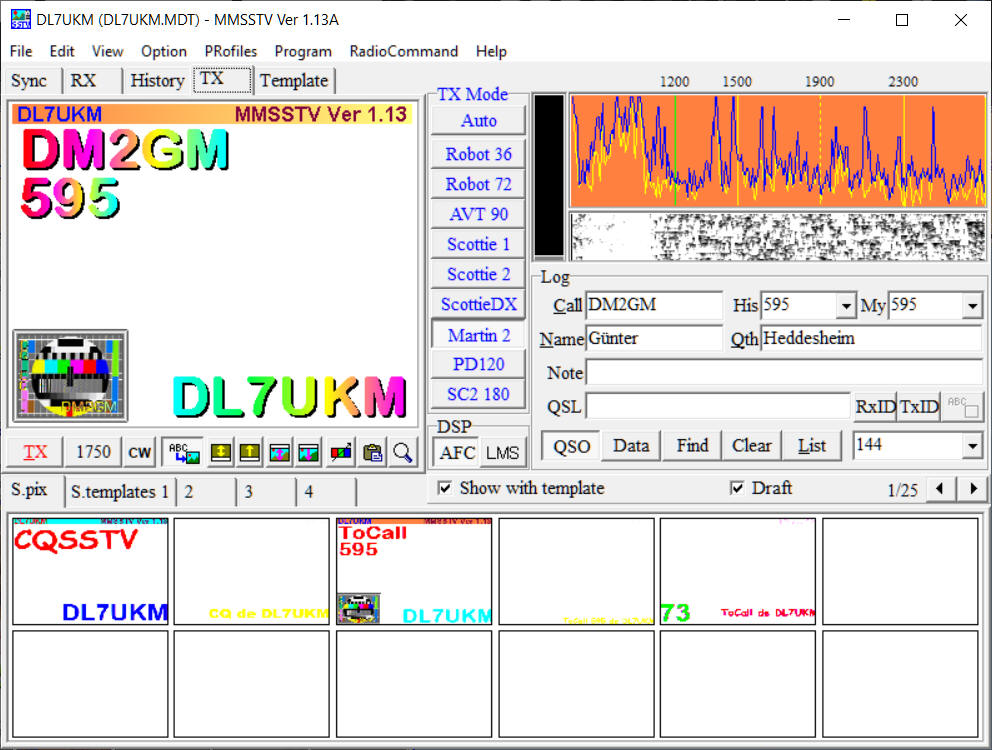

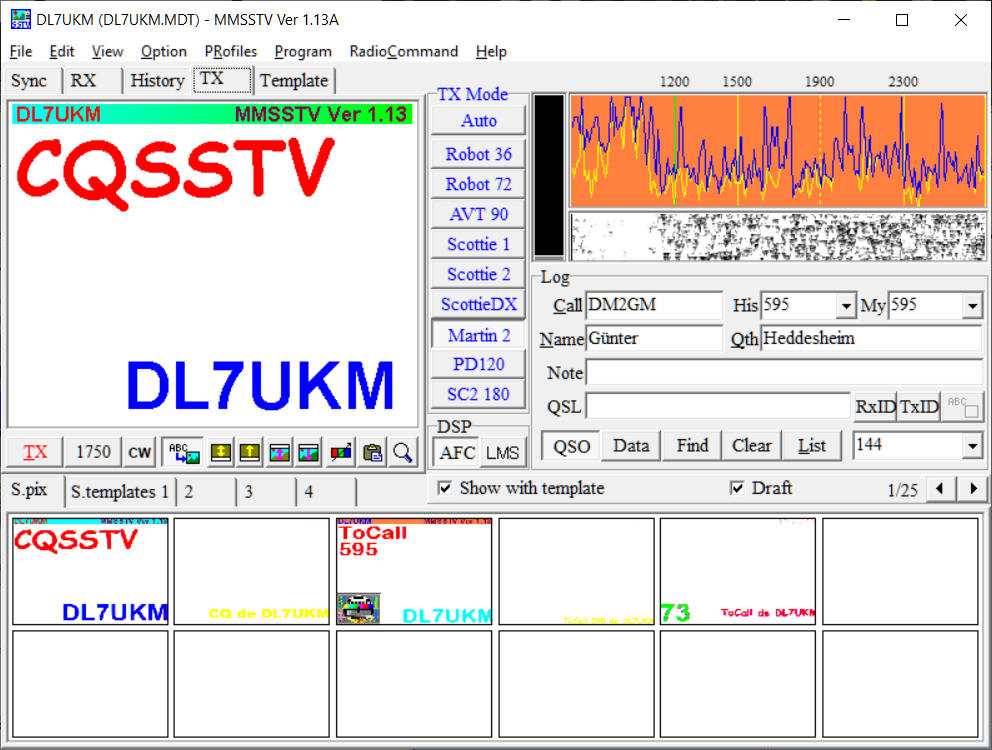

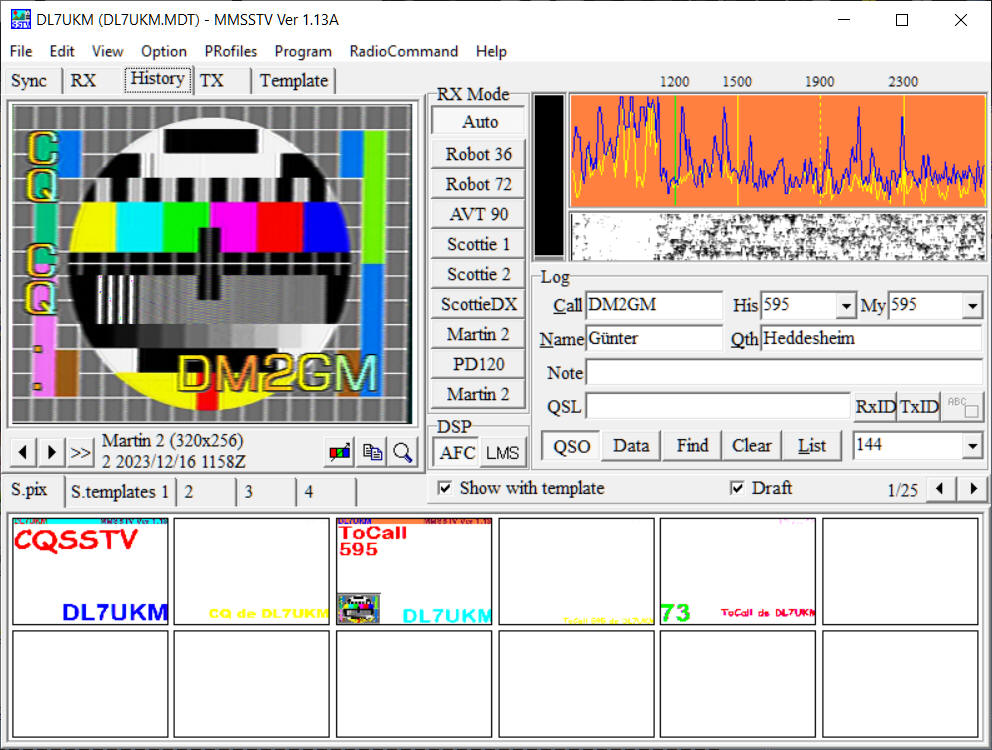

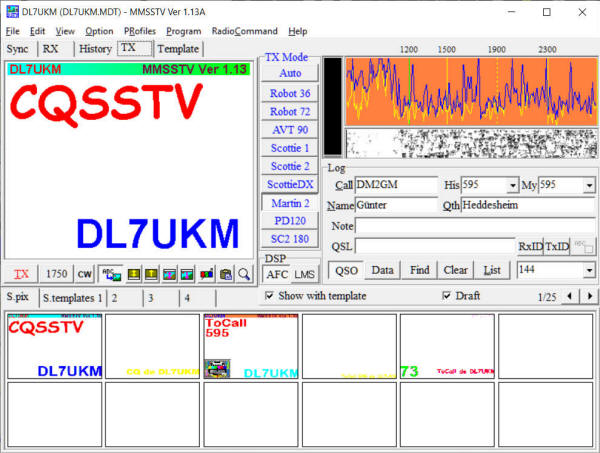

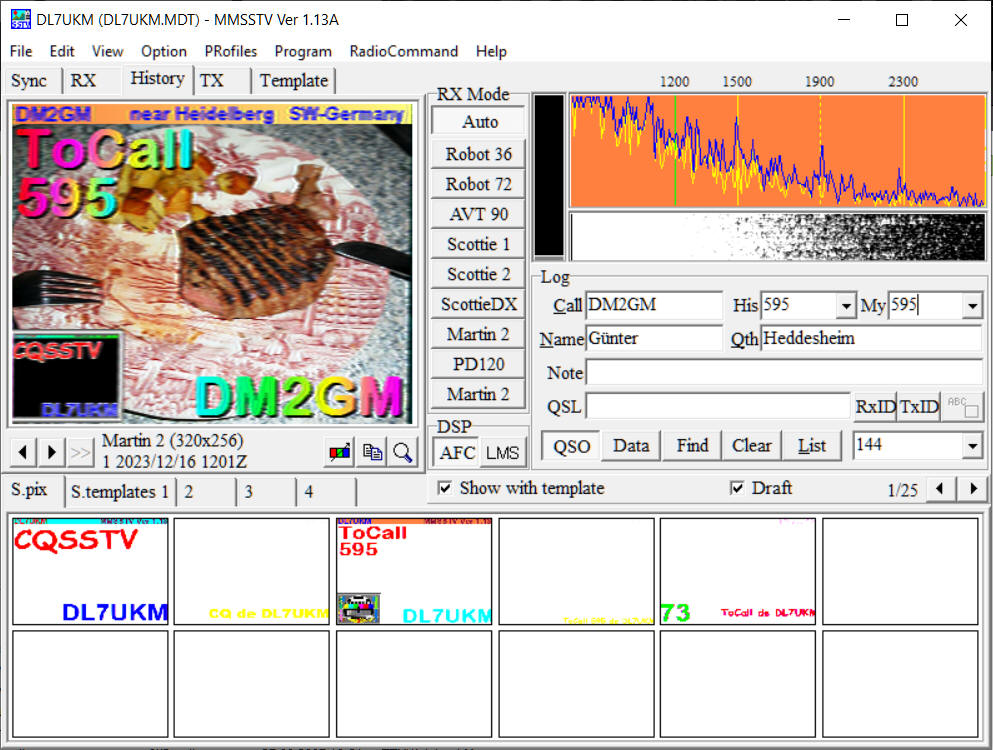

Einige SSTV-QSO-Tests mit DM2GM absolviert. Doch leider konnten keine SSTV-Signale von der ISS empfangen werden. Dazu siehe hier.
- SSTV-Aussendungen von der Internationalen Raumstation (ISS) auf 145,800 MHz FM
Voice and SSTV downlink - 145.800
Voice Uplink- ITU 1 (Europe, Africa & Russia) - 145.200
Voice Uplink - ITU 2&3 (Everywhere else) - 144.490
VHF Packet up and downlink - 145.825
UHF Packet up and downlink - 437.550 V/u
Repeater Uplink - 145.990 (PL 67.0) V/u
Repeater downlink - 437.800
** Sadly, seeing reports of nothing heard. Even the crew tried to listen using the COL ham radio. Looks like some additional troubleshooting will be needed to get the system working properly.
**UPDATE - Dec 19
** Still nothing heard (thanks for all the reception report postings) and the event is scheduled to conclude about 18:00 UTC today. Hopefully they can resolve the issue and we can try again soon."
- Anwender in Aktion, Erfahrungsaustausch

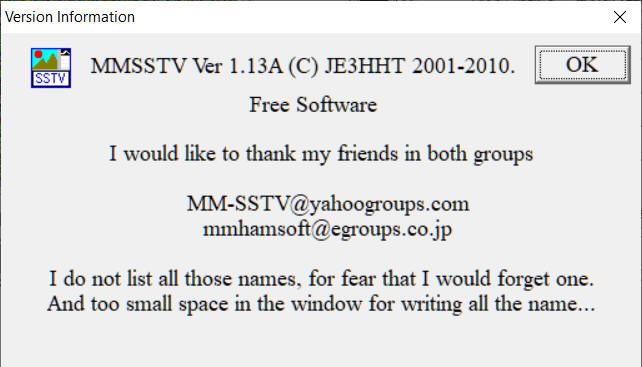

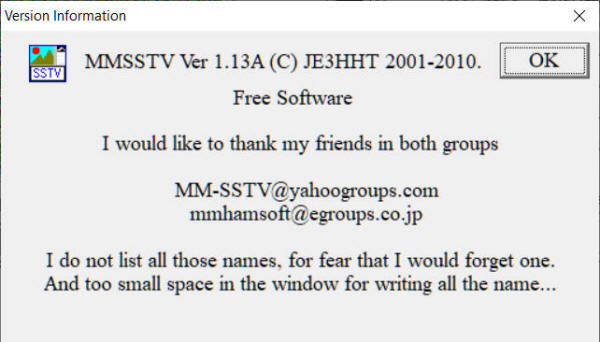

"What's new in MMSSTV Version 1.13A
September 29, 2010
JE3HHT Makoto Mori
Translated into English by JA7UDE Oba
*******************************
Revision history Ver1.13 -> Ver1.13A
*******************************
- Fixed the sound card selection problem
- Fixed minor glitches and improved several functions"
Groups.io

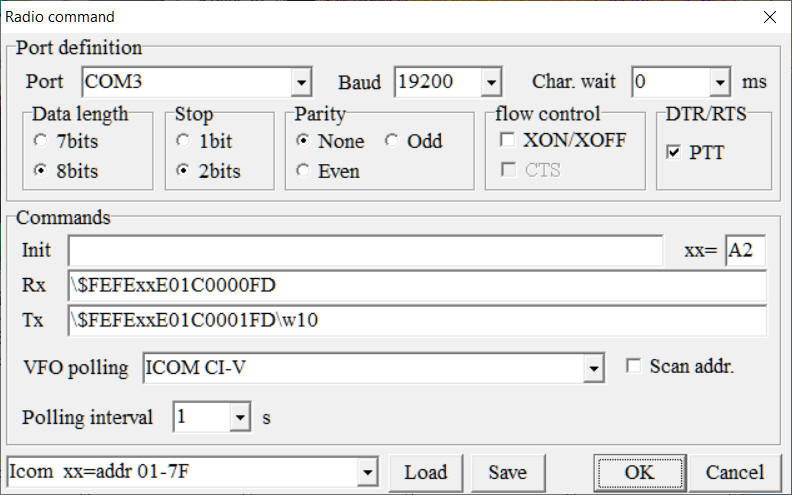

Warum Stop: 2bits?
- Step by Step!

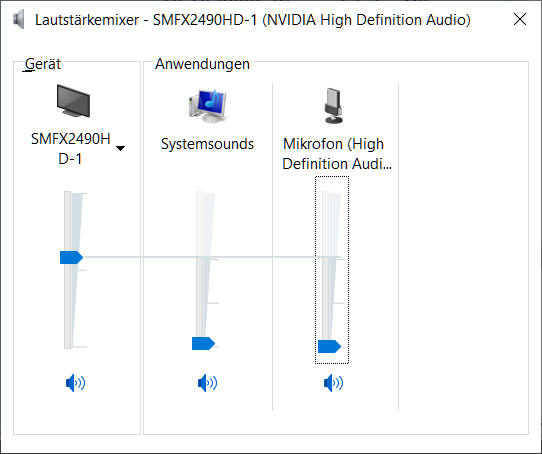

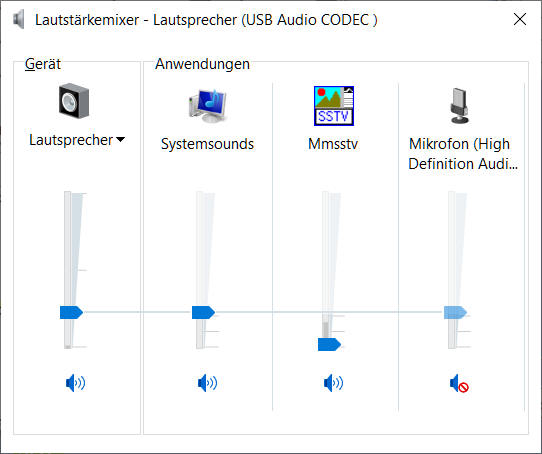

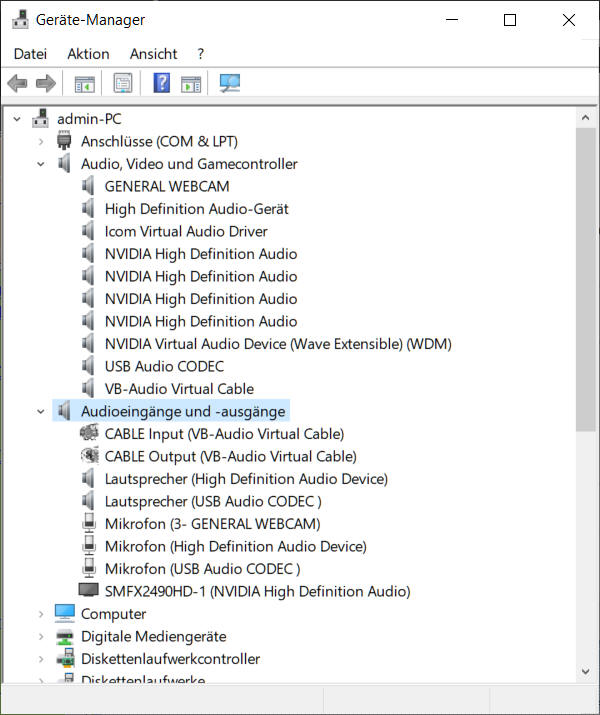

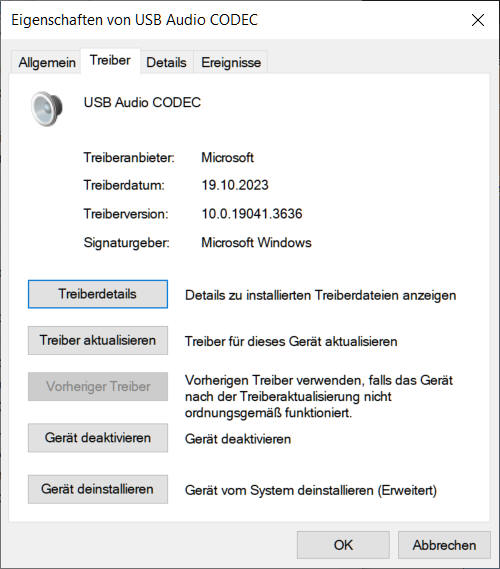

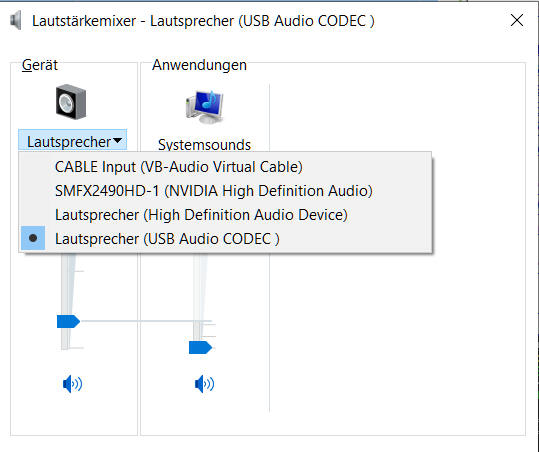

18.12.2023, Warum ist das Mikrofon(High Definition Audio) vorhanden
MIC(HD) verursachte Brummen, kreuzte USB-Kabel der chinesischen WEB-CAM, Kopplung via USB, auch für Sound. Mikrofon nicht nutzbar und Video, naja, es geht noch schlechter, hi.

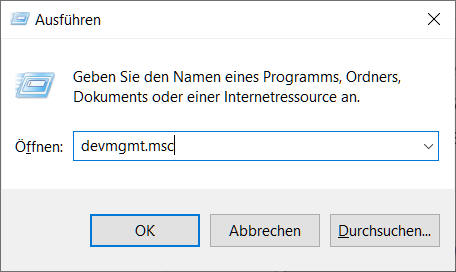

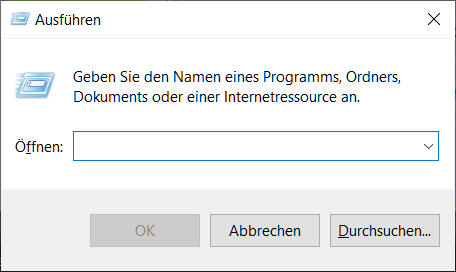

---> devmgmt.msc
******************************************
Part of the YONIQ code © 2020 by EA1IMW under the same terms
******************************************
YONIQ has been created from the modification of part of the source code provided
from "Github" under "GNU Lesser Public General License" and the creation of new code,
as indicated from "http://mm-open.org/". In addition, respecting the license, the
complete YONIQ code can be downloaded from the original YONIQ download website.
******************************************
Any questions related to YONIQ should be made only through the email "YONIQ@evl.es"
******************************************
TERMS of USE
============
MMSSTV is distributed as Freeware and is free for personal use. No person shall
use or distribute this program in any way to make a profit. It is to be a free program in compliance with the wishes of the author.
The World Wide Copy Right is held by Makoto Mori - JE3HHT.
Users of this program are asked to comply with the following:
ALL comments, bug reports, requests for help... etc.
MUST be handled through the MMSSTV Yahoo Group...
Members of the beta/help team as well as Mako - JE3HHT,
the author are reading the messages on the list server.
DO NOT send e-mail directly to JE3HHT, the webmaster of the
MM Hamsoft Website or members of the beta/help group.
Check on the website and Yahoo groups for the latest information.
MM Hamsoft Web Site - http://hamsoft.ca
MMSSTV Users Group - http://groups.yahoo.com/group/MM-SSTV
--------------------------------------
******************************************
Part of the YONIQ code © 2020 by EA1IMW under the same terms
******************************************
YONIQ has been created from the modification of part of the source code provided
from "Github" under "GNU Lesser Public General License" and the creation of new code,
as indicated from "http://mm-open.org/". In addition, respecting the license, the
complete YONIQ code can be downloaded from the original YONIQ download website.
******************************************
Any questions related to YONIQ should be made only through the email "YONIQ@evl.es"
******************************************

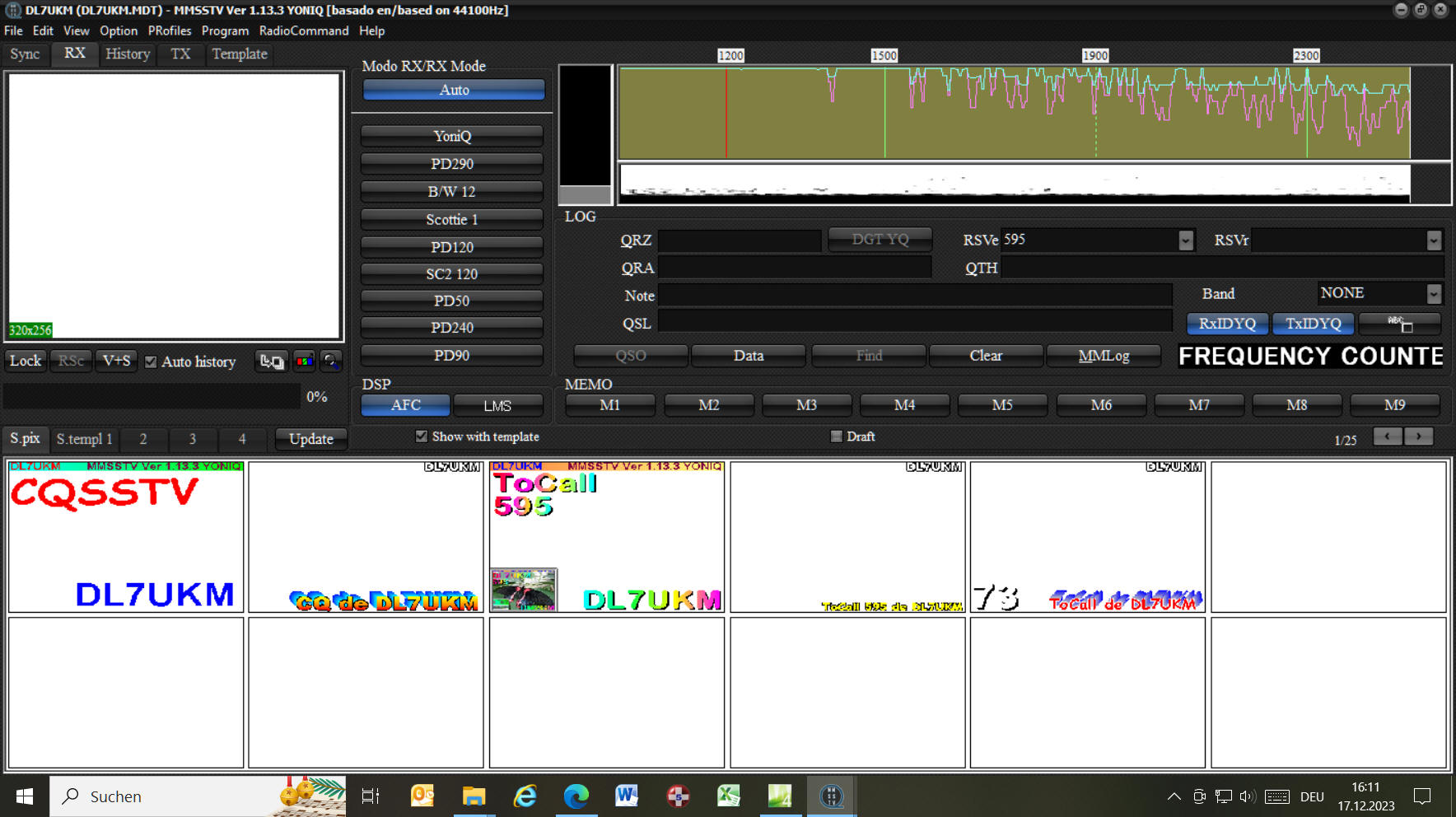

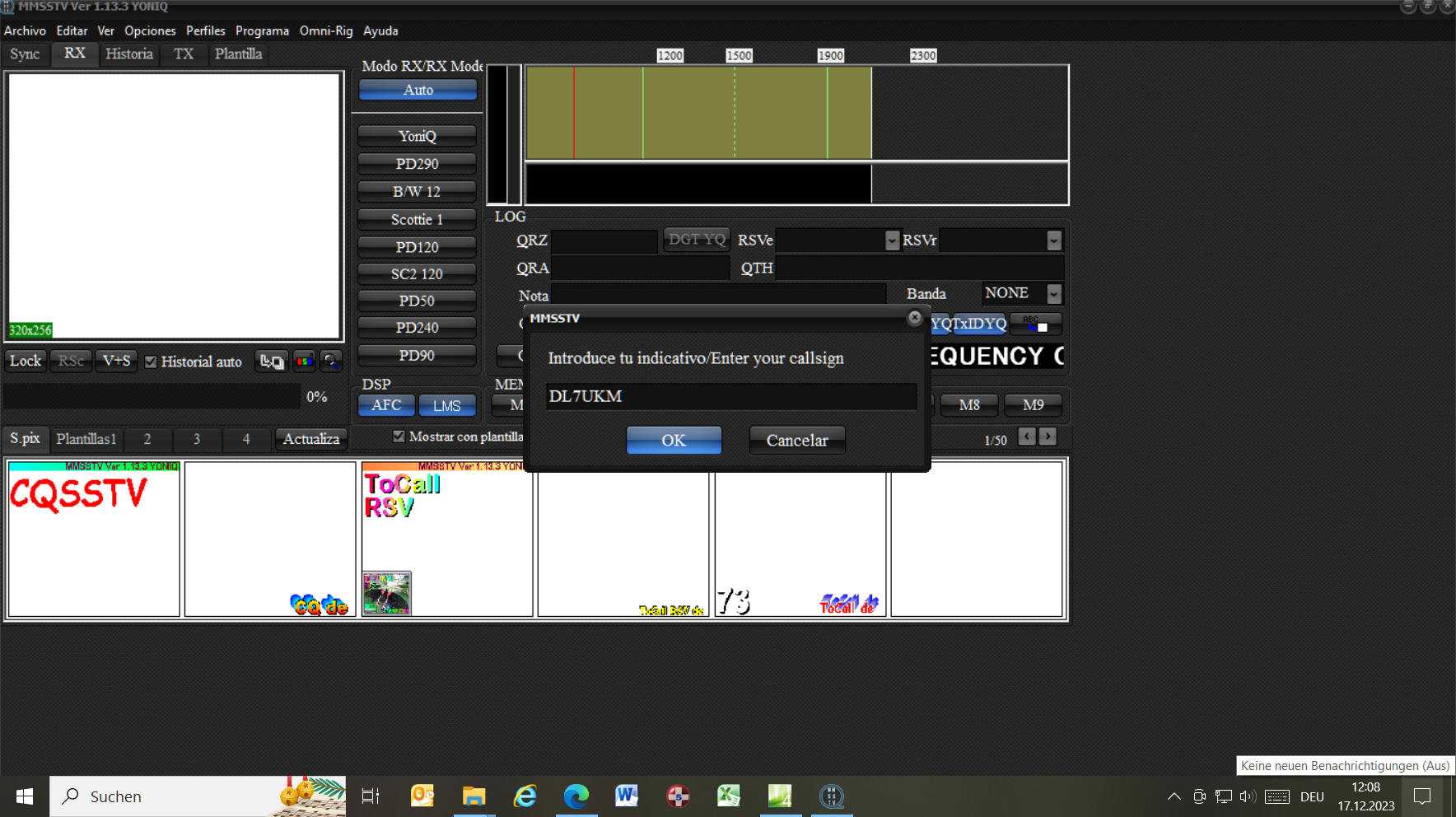

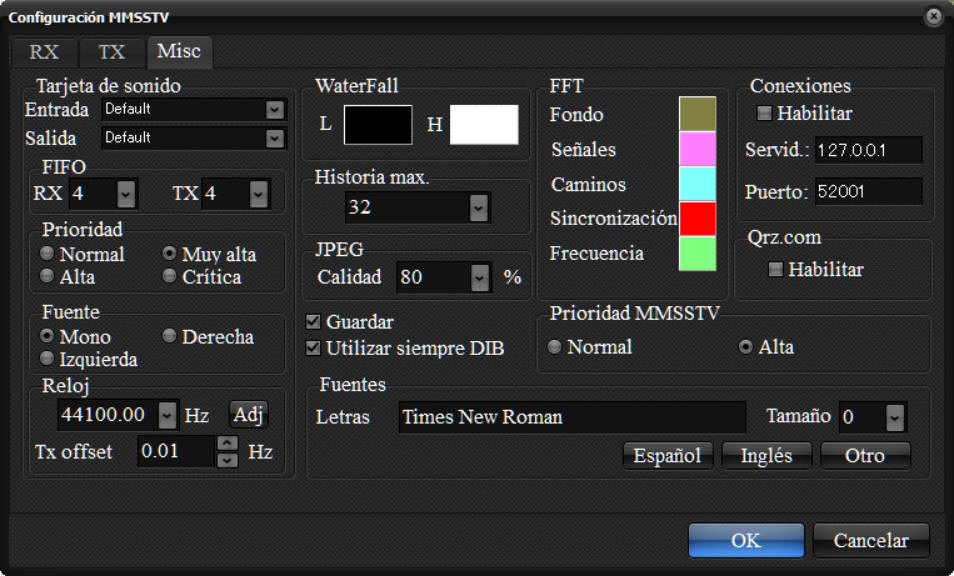

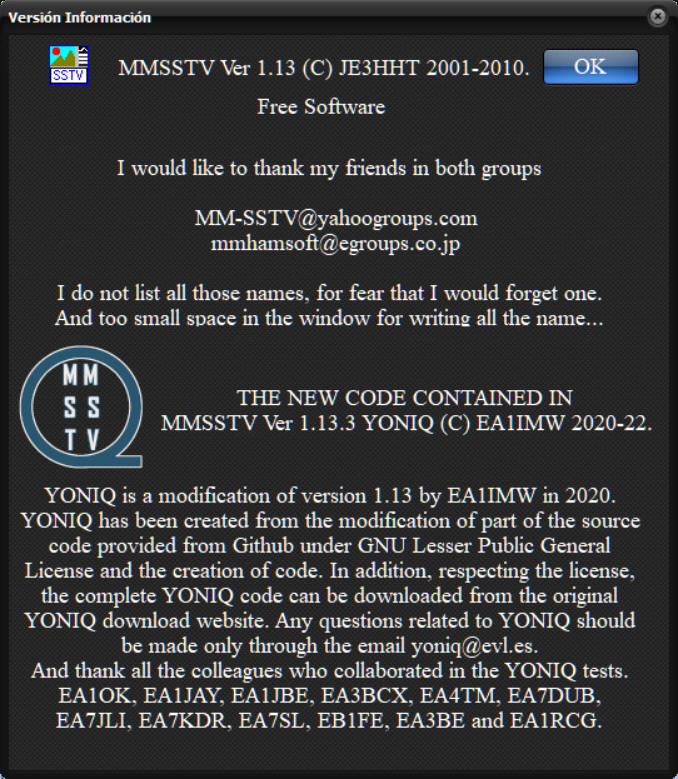

MMSSTV 1.13 YONIQ - February 8, 2020
*************************************
© 2020 by EA1IMW Eugenio Fdez
MMSSTV 1.13a FULL - September 29, 2010
*************************************
© 2001-2012 by JE3HHT Makoto Mori
Translated into English by JA7UDE Nobuyuki Oba
For more information about MMSSTV and the use of the program see:

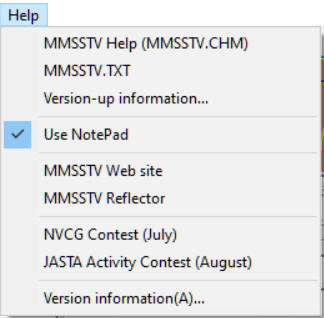

From the program Help Menu
--------------------------
- MMSSTV Help
- MMSSTV.TXT (Basic operations)
- Version-up information
From the Windows program Start Menu or Program Folder
-----------------------------------------------------
- MMSSTV Help (MMSSTV.CHM)
- Basic operations (EMMSSTV.TXT)
- MMSSTV FSKID (FSKID.TXT)
- MMSSTV Repeater Mode (REPEATER.TXT)
- New SSTV Modes (MODE.TXT)
- Revision History (EUPDATE.TXT)
- Readme.txt
- License.TXT
- Terms.txt
Please send comments and questions to the MMSSTV
Yahoo Group http://groups.yahoo.com/group/MM-SSTV
=============================++++++++++++++======
Release notes:
MMSSTV Help
----------
A, updated help, from Russ - WL7LP, is included with this release. The help
file is now in the new Microsoft CHM format. Please report any suggestions or
help problems to Russ in the MMSSTV Yahoo group.
**A special thanks Russ providing the new updated help file.
(The following was Canaged/Updated in ver 1.12)
- The sound card selection scheme changed.
This makes it easier to select the correct sound card device.
- Soundcard Output Level works on Vista and Windows 7.
- Soundcard Input Level works on Vista and Windows 7.
- Updated the duplication check routime of JASTA contest.
===================================
If you have a previous version of MMSSTV you should install this version in
the same folder to retain your setup information and pictures.
..............................................
This release uses Inno Setup version 5 (Innovative Setup) a Freeware installer.
http://www.jrsoftware.org
This is a "Freeware" installer - more fitting for distributing Freeware software!
..............................................
To Uninstall MMSSTV:
Should you ever want to remove MMSSTV from your computer.
You can Delete MMSSTV, Using the Windows "Add/Remove Programs" or by clicking on
"Uninstall MMSSTV" in the windows [Start] Programs menu.
Uninstalling MMSSTV will remove the program, shortcuts and registry entries.
It will leave the MMSSTV folder, with a sub-folder, that were not created by
the install program. Leaving this on your computer will not cause any problems.
If you are short of hard drive space or just what to clean things up, just
delete the MMSSTV folder..
------------------------------------------
About the MM Hamsoft Programs and Website
=========================================
I package, released and made the MM programs available for free.
I provide the MM Hamsoft Website as a free service to users at
no direct cost. Money to pay for operating the MM Hamsoft -
http://hamsoft.ca comes from advertising revenue and donations
from a few much appreciated users. If you would like to help,
please click "Donations" on the MM Hamsoft website for more
information.
Disclaimer:
Although all possible effort has been put into testing and check this install
process, I except no responsibility for problem that may occur and/or cause
undesirable results from using this installer.
In simple terms:
Everything worked just fine in all my tests but computers being what they are
one can never know what things can happen. It is very unlikely that you will
experience any problems but occasionally things go wrong..
73 - Ken - VE5KC
- MM Hamsoft - http://hamsoft.ca
- VE5KC - http://ham-radio.ca
- Amateur Radio Link - http://amateur-radio.ca
----
DX Atlas: Amateur Radio software

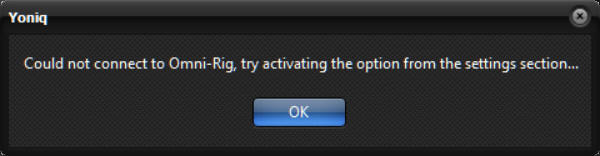

Omni-Rig 1.20
