Smartphone |
Smartphone oder der Computer der auch telefoniert by mkn
|
|
| |
|
Die Mehrheit der OM's besitzt ein
Smartphone zum Surfen und Telefonieren(sei es aktustisch oder als
Nachricht), aber das kleine Gerät in der Hand bietet sich auch als
nützliches Handwerkzeug des Funkamateurs an. |
|
| |
|
|
|
| |
|
|
|
| |
Android Device |
Smartphone,
Tablet,... |
|
| |
OS |
Android |
|
| |
android
Wired Audio Headset Specification |
|
| |
|
|
|
| |
|
|
|
SAMSUNG Galaxy SIII
|
|
|
| |
|
|
|
| |
Samsung
Galaxy S III by
en.wikipedia.org |
|
| |
Samsung GALAXY S3: Testbericht – Teil 1: Technische Daten und Lieferumfang
Quelle: Your-Android.de |
| |
|
|
|
| |
Interface |
|
|
| |
externes Headset |
Logitech
H110
Headset CONRAD |
|
| |
|
|
|
| |
Audio Adapter |
AVK 432 :: Klinkenadapter 3,5mm 4pol / 2x 3,5mm 2pol
Reichelt |
Getestet mit
Samsung Galaxy SIII und Headset H110, OK. |
| |
|
"Audioadapter-Kabel zum Anschluss eines PC-Headsets an eine 4polige
Klinken-Buchse (z.B. Netbook/Tablet-PC/Smartphone)
• Verwechslungssicherheit
durch PC-99-Farbcodierung
• Anschluss 1: 3,5-mm-Klinkenstecker, 4-polig
• Anschluss 2: 3,5-mm-Klinkenkupplung( 2x 3-polig)
• Länge: 0,1 m"
Reichelt
Schaltbild, Datenblatt AVK 417-0030 goobay® Achtung,
Mikrofonkupplung(rot) ist als Stereo-Buchse, jedoch L-R-Kanal verbunden,
ausgeführt. Verwendung nur mit 3,5-mm-Stereo-Klinkenstecker möglich. [mkn, 31.10.2015] |
| |
|
DATENBLATT_GOOBAY_50467.pdf |
Nunmehr gib es ein aktualisiertes Schaltbild.[mkn, bemerkt am
11.11.2016] |
| |
OTG Kabel |
- USB OTG steht für "USB On-The-Go"
-
Anschlußmöglichkeit von Geräten, wie Tastatur, USB-Equipment, etc., via
USB |
  |
| |
|
|
|
SAMSUNG Galaxy A10
|
Sommer 2019, mkn |
|
| |
|
|
|
| |
-
https://www.samsung.com/de/smartphones/galaxy-a10-a105fnds/SM-A105FZBUDBT/
|
|
| |
|
|
|
| |
|
|
|
Software
|
|
|
| |
|
|
|
| |
Ham Radio
Android Software by
The DXzone |
|
| |
Google play --->
|
Amateur
Radio
Funkamateur |
|
| |
|
|
|
| |
WOLPHI Solutions |
WOLPHI LLC, USA
Android Apps
Interface
RTTY, SSTV, PSK, CW, DTMF, .. |
|
| |
|
|
|
| |
|
|
|
Amateur Radio Call Directory
|
|
| |
|
|
|
| |
QRZDroid |
Status: 16.02.2018 †, ???
|
QRZ.com |
| |
|
|
|
| |
Ham Radio Prefixes
 |
Call-Eingabe: Land, ITU-Zone, CQ-Zone, GMT |
 |
| |
|
|
|
APRS
|
|
|
| |
|
|
|
| |
APRSdroid |
APRSdroid - APRS for Android
Verbindung zum APRS Netzwork via
- APRS-IS via Internet (WiFi
oder mobile Datenverbindung)
-
AFSK (Audio-Verbindung zwischen den RF-Transceiver und dem
Smartphone)
- Bluetooth-serielle Verbindung zu einem
TNC
"If you really like APRSdroid, you can support the author by buying
the
Market version. You will get automatic updates and a good feeling.
You can also get the
sources and follow the
compilation
instructions.
It is also possible to
download the APK for manual installation."
Using APRSdroid with a Kenwood
APRS radio (D7x0)
APRSdroid Offline Maps (using OSM)
EASY-APRS mit dem Programm
"APRSDROID" by DJ7OO ,
Interface |
http://www.kh-gps.de/aprsdroid.pdf
|
| |
|
|
|
| |
APRS Viewer |
stations around your location |
Status: 16.02.2018 †, ??? |
| |
|
|
|
| |
APRS Tracker |
U2APRS |
ja7ude |
| |
|
|
|
| |
|
|
|
Baken
|
|
|
| |
|
|
|
| |
NCDXF Beacon |
by Wolphi
LLC  |
|
| |
|
 |
|
| |
|
|
|
CW
|
|
|
| |
|
|
|
| |
IZ2UUF Morse Koch CW
http://www.iz2uuf.net
Introduction |
 |
|
| |
|
|
|
| |
|
|
|
DARC
|
|
|
| |
DARC e. V. App |
2,69 Euro 08.04.2015, Mitgliedschaft DARC erforderlich
|
|
| |
|
 |
 |
Issues:
- Zoom-Faktor könnte etwas größer sein
|
| |
DARC News -RSS-Feed für Android
|
DC7OS
 |
darc.news.apk
Nutzung_RSS_Newsfeeds.pdf |

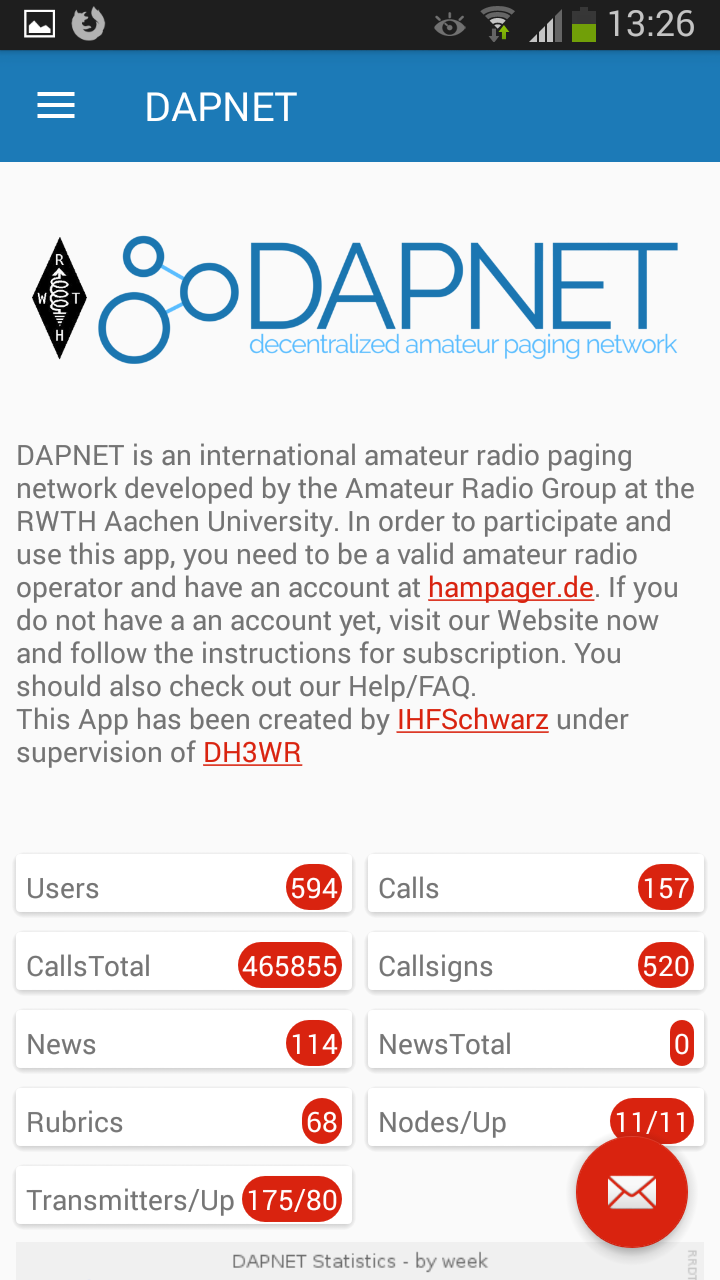

DAPNET
|
|
|
|
DAPNET
Amateurfunkgruppe an der RWTH Aachen
Funkrufmaster 2.0 DAPNET
|
 |
|
| |
|
|
|
DTMF
|
|
|
| |
|
|
Google
DTMF |
|
DTMF
|
1,82 € 13.06.2015
"DTMF decodes
and encodes DTMF (Dual-tone multi-frequency) tones trough the phones
speaker and microphone.
Encoder: Always 2 tones are assigned to each
key."
|
V1.24 OK on SIII
DTMF
Video on YouTube EN
DTMF Manual |
| |
|
|
|
| |
|
|
|
|
|
|
|
Echolink
|
|
|
| |
EchoLink |
EchoLink for Android |
EchoLink.org |
| |
EchoLink Finder |
  |
Hamdroid |
| |
|
|
|
Electronic
|
|
|
| |
|
|
|
| |
Resistor Color Code Calculator
android-design.nl |
 |
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
Equipment
|
|
|
| |
|
|
|
| |
ICOM
|
|
|
| |
|
ICOM
RS-MS1A |
http://www.icom.co.jp/ |
| |
|
|
|
| |
Elecraft
|
|
|
| |
|
KX3 Companion FREE |
http://kx3companion.com/kx3remote/ |
| |
|
KX3 Companion 4,99 Euro 08.04.2015 |
http://kx3companion.com/kx3remote/ |
| |
|
|
|
Frequency Counter
|
|
|
| |
|
|
|
| |
|
 |
Keuwlsoft's Apps for Android |
| |
|
|
|
GPS
|
|
|
| |
|
|
|
| |
HamGPS
EA4EOZ |
 |
Achtung: es wird eine UTC-Zeit angezeigt,
welche aus der Smartphone-Zeitanzeige abgeleitet wird.
Für die
korrekte Anzeige der GPS-Zeit ist unter den Einstellungen des Smartphone's die
Netzsynchronisation auszuwählen. [22.12.2015, mkn] |
| |
|
 |
|
| |
|
|
|
| |
GPS-Test |
|
|
| |
|
|
|
Interface
|
Kopplung zwischen Empfänger, Sender und
Smartphone |
|
| |
|
|
|
| |
Wolphi |
|
|
| |
|
Receive only interface cable for Android |
|
| |
WolphiLink interface
|
Plug & Play Interface for Android Smartphones to Yeasu FT817, FT857
and FT897 as well as IC-703 and IC-706 radio’s |
Owners
Manual |
| |
DroidSSTV Interface |
|
|
| |
|
|
|
| |
|
|
|
| |
PSK31-
RTTY-SSTV-CW Android Interface by DD7LP |
|
| |
|
---> PCB
DH4YM
-
(01.05.2015) Smartphone Interface nach DD7LP |
PCB |
| |
|
-
FT-817 smartphone interface for PSKdroid and APRSdroid
- Samsung Galaxy S3 |
by DK9JC |
|
"Construction Interface SSTV / PSK / RTTY for Tablet (Android) by DD7LP"
by Wojtek T |
Erfahrungen, Anpassungen |
| |
|
|
| |
EASY-APRS mit dem Programm
"APRSDROID" by DJ7OO ,
Interface |
|
| |
|
|
| |
Designing a Phone/Radio interface by
waynemerry |
|
| |
|
|
| |
|
|
| |
|
|
|
| |
Digital VOX
Sound Card Interface by KH6TY |
|
| |
PSK interface voor Android by
PI4RAZ |
|
| |
"An AFSK Interface for AndroidTM
Smartphones" by Martin Huyett,
K0BXB, QST 2012 05, S. 30-32,
deutsche Übersetzung --> CQ DL 2012, H. 5 |
| |
|
|
| |
android
Wired Audio Headset Specification |
|
| |
UNDERSTANDING MOUTHPIECE OR MICROPHONE, EARPIECE AND IHF OR BUZZER
SPEAKERS CIRCUIT ON MOBILE PHONES |
| |
|
|
|
| |
|
|
| |
|
|
Interferenzen
|
|
|
| |
|
|
|
| |
Interference Hunter
by Rohde&Schwarz |
 |
|
| |
|
|
|
| |
|
|
|
IRLP
|
|
|
| |
|
|
|
| |
IRLP Finder |
IRLP Finder |
Hamdroid |
| |
|
|
|
LoTW
|
|
|
| |
|
 |
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
Propagation
|
|
|
| |
MUF Predictor |
 |
MUF Maximum Usable Frequency
LUF Lowest
Usable Frequency
SSN
MicroMUF Raymond Fricker, 1984, BBC External
Service |
| |
|
|
|
| |
|
|
|
| |
|
|
|
PSK
|
|
|
| |
|
|
|
| |

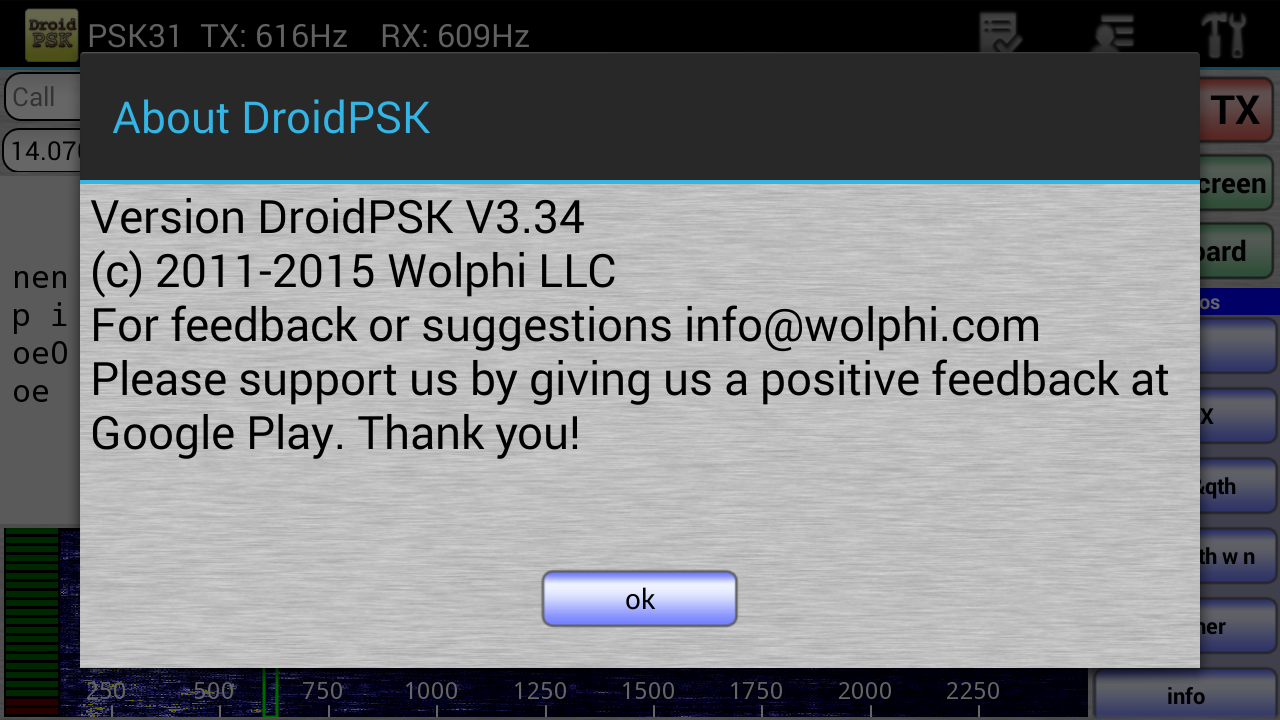

DroidPSK - PSK for Ham Radio |
6,06 € 30.10.2015
Manual |
 |
DroidPSK Open Beta Tester |
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
QTH Locator
|
|
|
| |
|
History: QTH Locator Maps |
|
| |
QTH Locator |
|
|
| |
|
|
|
| |
|
|
|
Remote Control and Monitoring
|
|
| |
|
|
|
| |
Pocket RxTx |
Android application used to
remotely control several HAM radio |
|
| |
BktRemote |
|
http://www.maniaradio.it/bktremotesuite.html |
| |
|
|
|
Repeater
|
|
|
| |
|
|
|
| |
Repeater |
|
|
| |
RepeaterBook |
 |
|
| |
Repeaters BG
http://www.repeaters.bg
http://www.dstar.bg |
 |
|
| |
|
|
|
| |
|
|
|
RF Engineering Tools
|
|
|
| |
|
|
|
| |
dB Calculator |
|
Rohde & Schwarz |
|
Freescale RF Engineering Tools
|
Features
Performs calculations
including:
PCB microstrip impedance
DC-to-RF conversion
efficiency
Cascaded noise figure analysis of multi-stage RF designs
Performs conversions including:
dBm-to-watts and watts-to-dBm
Common length conversions
Polar-to-rectangular and
rectangular-to-polar impedance transformations
RF Glossary EN
|
Freescale Mobile Applications
Freescale |
| |
NXP RF Calc |
NXP RF
Calculator App For Android and iOS
 |
NXP |
| |
RFI
Tools |
|
RF Industries Pty Ltd
RFI WIRELESS |
| |
Interference Hunter |
|
Rohde & Schwarz |
| |
FieldStrength & PowerEstimator |
-
1MA85: Field Strength and Power Estimator Windows-Version verfügbar
-
Application Note |
Rohde & Schwarz |
| |
Aviation RF Link |
|
Rohde & Schwarz |
| |
|
|
|
|
(Analog) Electronic Toolbox free |
|
|
| |
Sehr gut, ein gutes Hilfsmittel für den Funkamateur!
|

 |
http://www.android-design.nl/ |
| |
|
|
|
| |
1.1 Parallel LCR Resonance |
|
|
| |
1.2 Series LCR Resonance |
|
|
| |
1.3 Inductor Impedance |
|
|
| |
1.4 Capacitance Impedance |
|
|
| |
1.5 Parallel LCR impedance |
|
|
| |
1.6 CR/LR/LCR Calculator (lowpass, highpass, bandpass
and bandstop) |
|
| |
1.6.1 |
|
|
| |
1.6.2 |
|
|
| |
1.7 Led Resistor Calculator |
|
|
| |
1.8 Capacitor |
Plattenkondensator |
|
| |
1.9 Peak to RMS (peak, RMS, average, CF) |
|
| |
1.10 Air Core Inductor Inductance Calculator |
Luftspule |
| |
1.11 Power and voltage converter |
|
|
| |
1.12 Mixer harmonics |
|
|
| |
1.13 --- |
|
|
| |
1.14 Radio equation calculator (1-way path loss) |
|
| |
2.1 Low Pass filter |
|
|
| |
2.2 Reverse Series and Parallel resistor calculations |
|
| |
2.3 Band Pass filter |
|
|
| |
2.4 Ohm's Law |
|
|
| |
2.5 High Pass filter |
|
|
| |
2.6 Inductor Color Code Calculator |
|
|
| |
2.7 Band Stop filter |
|
|
| |
2.8 Series and Parallel component (R, L and C)
calculations |
|
| |
2.9 Capacitor Charge Calculator |
|
|
| |
2.10 Inductor Charge Calculator |
|
|
| |
2.11 PCB Trace Width and Clearance Calculator |
|
|
2.12 Resistor Color Code
calculator |
|
|
| |
3.1 Opamp Calculator |
|
|
| |
3.2 Series and Parallel reverse resistor values |
|
| |
3.3 Wavelength calculator |
|
|
| |
3.4 Voltage Divider Calculator |
|
|
| |
3.5 Heat Sink Temp |
|
|
| |
3.6 Fresnel Zone |
|
|
|
3.7 Resistor SMD Code calculator |
|
|
|
3.8 Thermal via calculator |
|
|
| |
3.9 PI and T attenuator |
Berechnung Dämpfungsgliede |
|
| |
3.10 Noise floor |
|
|
| |
3.11 Bridged T Attenuator Calculator |
|
|
| |
3.12 L attenuator |
|
|
|
3.13 Capacitor SMD Code calculator |
|
|
| |
3.14 --- |
|
|
| |
|
|
|
| |
Hilfe-Taste |
Erklärung, Formeln |
|
| |
|
|
|
| |
|
|
|
| |
10) Capacitor impedance |
Doppelt? |
|
| |
12) Amplifier cascade (NF, Gain, P1db, OIP2, OIP3) |
|
| |
15) Helical antenna |
|
|
| |
30) LCR Parallel - Series Conversion Calculator |
|
| |
|
|
|
| |
RF & Microwave Toolbox Lite |
  |
Tutorials |
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
RF & Microwave Toolbox Pro
|
9,67 Euro 08.04.2015
"This toolbox
contains also the tools of the Analog Toolbox and the PCB Trace
Calculator"
http://www.android-design.nl/joomla/index.php/android-apps
|
RF & Microwave Toolbox |
| |
   |
 |
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
MCL RF Calculator |
|
|
| |
|
 |
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
RF Line Calculator |
 |
|
| |
RF Tools - VSWR+ |
 |
|
| |
|
|
|
| |
Wireless Comms Calculator |
|
Rohde & Schwarz |
| |
|
|
|
RTTY
|
|
|
| |
DroidRTTY |
6,02 Euro, 02.11.2015
|
 |
| |
|
 |
 |
45,45 Baud 170 Hz Shift
50 Baud 450 Hz Shift
50
Baud 85 Hz Shift |
| |
|
|
|
| |
|
|
|
Satellite
|
|
|
| |
|
|
|
| |
AmsatDroid FREE
 |
Installation and User Guide - HamSatDroid
g4dpz
forum.funcube.org.uk |
  |
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
SDR
|
|
|
| |
|
|
|
| |
glSDR |
Client app for connecting to Amateur Radio
(Ham Radio) online servers. |
|
| |
RTL2832U driver |
|
|
| |
SDR Touch - Live radio via USB |
http://sdrtouch.com/ |
RTL USB Stick |
| |
SDR Touch Key |
7,99 Euro 08.04.2015 |
|
| |
|
|
|
|
Wavesink Trial DAB / FM Radio |
RTL USB
Stick |
|
| |
Wavesink Plus DAB+ FM-RDS |
9,98 Euro(2014), RTL USB
Stick, |
http://feilen-stolz.de/wavesinkbb
http://feilen-stolz.de/wavesink_android.php |
| |
|
 |
|
| |
RF Analyzer |
0,79 Euro 08.04.2015, RTL USB Stick |
|
| |
|
|
|
Signalgeneratoren
|
|
|
| |
|
|
|
| |
Functions Generator |
 |
|
| |
|
|
|
| |
|
|
|
|
|
|
|
Software
|
|
|
| |
ANDROID
Amateurfunk-Software auf dem ANDROID Betriebssystem DC7OS |
| |
|
|
|
| |
|
|
|
| |
|
|
|
| SOTA |
|
|
| |
SOTA Finder |
http://www.zbm2.com/ |
|
| |
Finden von SOTA Summits |
 |
|
| |
|
|
|
Spectrum Analyzer
|
|
|
| |
|
|
|
| |
|
 |
RaspberryWood LLC |
| |
|
|
|
SSTV
|
|
|
|
DroidSSTV |
SSTV for Android
with DroidSSTV for Ham Radio by
Wolphi
DroidSSTV manual
DroidSSTV Interface |
|
| |
|
|
|
VNA
|
|
|
|
Blue VNA
 |
by
Dan Toma, YO3GGX |
BlueVNA on Google play |
| |
|
miniVNA Android controller, Forum
miniVNA Android
application |
|
| |
|
|
|
| |
|
|
|
Voice Keyer
|
|
|
| |
|
|
|
|
Ham Radio Voice Keyer |
1,14 Euro 08.04.2015,
Wolphi LLC |
http://www.wolphi.com/
WolphiLink interface |
| |
|
 |
|
| |
|
|
|
| |
Voice Keyer Basic |
ON3PHP |
|
| |
Voice Keyer Pro |
ON3PHP |
|
| |
|
 |
|
| |
|
|
|
| |
|
|
|
VoIP-Kommunikation
|
|
|
| |
|
|
|
| |
Skype |
|
|
| |
|
|
|
| |
TeamSpeak 3 |
 |
TeamSpeak |
| |
|
|
|
| |
TopSec Phone |
Smartphone-Anwendung für VoIP-Kommunikation, Verschlüsselung
TopSec Phone App for Android Manual DE, EN |
Rohde & Schwarz |
| |
|
|
|
WiFi
|
|
|
| |
WiFi Overview 360 |
 |
|
Zeitschriften
|
|
|
|
|
|
|
| |
|
|
|
| |
cq-DL |
 |
Must be member of DARC
Neue Version
2016 |
| |
QST |
 |
Must be
member of ARRL |
| |
R&S®News |
 |
Rohde & Schwarz |
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
QRMcalc by Thilo Kootz,
DL9KCE |
 |
|
| |
FieldCalculator by Thilo Kootz,
DL9KCE |
 |
|
| |
|
|
|
| |
|
|
|
| |
To Do |
|
|
| |
|
|
|
| |
Thematische Sortierung der App's |
Was ist eine App? Altbekantes in ein
marketingtechnisch neues Gewand bepacktes "Wort" für Software. Zum Apple
passt besser eine App, oder auch Applikation, Anwendung, ... |
|
| |
|
Usage as controller, coder, decoder, ham radio interface
amateur radio operation
RF transmission
WLAN
UMTS
Applications
Software
Interface
Berechtigungen der APP's, warum wollen die soviel wissen, Wissendurst pur,
Sammelwut
oder?
Messgerät |
|
| |
|
|
|
| |
Manuelle Installation einer APK |
|
|
| |
|
- Freischaltung |
|
| |
|
- Download apk
- Start der apk
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
AFU Trainerdroid |
|
|
| |
HAMdroid |
Ham Info via
QRZ.com |
GPS, Fenster seitlich schieben
ON8RL |
| |
|
Samsung Galaxy S2 i9100 headset pinout |
|
| |
|
Externe Signalquellen am Smartphone Galaxy S GT-I9000 by
DL3JIN |
|
| |
|
External Mic on Galaxy Devices |
Dynm. Mikro, Gleichstrom Problem? |
| |
|
Samsung Galaxy S4 Headphone Jack |
|
| |
|
|
|
| |
Hardware Samsung SIII |
Model: GT-I9300
Android-Version: 4.3
Google ---> Samsung SIII GT-I9300
Service manual |
Info zu Gerät ;-) |
| |
|
Samsung S3, 02.11.2015, mkn |
|
|
Mikrofon-Eingang |
Mic-Input: Leerlauf
3,08 V DC, Kurzschluß Ik=
1,34 mA, nach Detektion 2,16 V, nach Detektion Ik=0,98 mA, Detektion durch S
Voice |
|
| |
|
S Voice
Google
S Voice Samsung S3
Samsung Galaxy S3 - S Voice und App-Sprachbefehle |
 |
| |
Headset SIII |
Mic: 1,986 kOkm
Taste Wiedergabe, Stopp
gedrückt: 50 Ohm
Wippe Lautstärke (-) gedrückt(nahe Taste): 460 Ohm
Wippe Lautstärke (+) gedrückt: 200 Ohm |
Headset |
| |
|
|
|
| |
Signal-Eingänge |
1. Mikrofon, akustische Kopplung
2.
Mikrofoneingang nutzen, Headset-Buchse, 4-polige-3,5-mm-Klinkenbuchse
- Belegung
- max. Eingangsspannung
-
Kondensator
3. Gibt es eine Möglichkeit der Nutzung einer externen
USB- Sound-Karte? |
| |
|
|
|
| |
Adapterkabel |
- NF-Ein- und Ausgang |
|
| |
|
- Testkopf, DC-Trennung |
|
| |
|
|
|
| |
|
|
|
| |
Literatur |
Smartphones für Amateurfunk nutzen! CQ DL
2015 12 |
Apps vorgestellt, Interface K0BXB |
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
Fritz!App WLAN |
|
|
| |
|
 |
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
Status: 16.02.2018 †, ???
Info zu Gerät ;-)
