DARC: Digimiodes
"sogenannte
Digitale Betriebsarten" --> richtig wäre Digitale
Sendearten |
Basics |
| |
Modulationsverfahren, Protokoll |
|
|
| |
|
|
|
| |
Digitale Übertragung von Sprache und Daten |
Digital Voice, Digital Data |
|
| |
|
|
|
| |
RTTY,
PSK31,
SIM31, MFSK16, MT63, TOR, AMTOR, PACTOR, PACTOR II, PACTOR
III, G-TOR, CLOVER, HF PACKET, HELLSCHREIBER, THROB,
FT8,
JT65A,
JT9,
ROS, etc. |
"Anruffrequenzen"
Dial-Frequenz des TX |
Trägerfrequenz, LSB, USB, Modulation im Seitenband |
| |
OK, packen wir CW noch dazu! |
|
|
| |
|
|
|
| |
Digital Modes Samples
by KB9UKD |
|
|
| |
http://www.k8zt.com/digital |
|
|
| |
Digimode - Übersicht, Sound Samples by
DL7AWO |
|
|
| |
|
|
|
| |
|
|
|
| |
DK5RK
Die
Soundkarte im Amateurfunk |
|
|
| |
Interface Rig Computer |
|
|
| |
|
|
|
| Einstieg |
|
| |
Software auf dem PC(mit Soundkarte) installieren, WebSDR im Internet
aufrufen, NF-Rx(NF-Ausgang der Soundkarte) mit NF-Eingang der
verwendeten Soundkarte verbinden( in der Regel 3,5 mm
Klinkenstecker-Kabel oder virtuelles Audio-Kabel). |
|
| |
- Los geht es mit dem Mitlesen.... |
|
|
| |
- Gefallen
gefunden? Ja?
Dann Interface für die Zusammenschaltung zwischen Rig und
Computer bauen oder erwerben. Bei neuerem RIG genügt ein USB-Kabel. |
| |
|
|
|
| |
|
|
|
| |
|
|
|
| MT63 |
MT63 - Wikipedia |
|
|
| |
MT63 Software |
|
|
| |
Navy Mars mt63 presentation
NAVY Mars |
|
|
| |
|
|
|
| PR |
Packet Radio |
|
|
| |
|
|
|
| |
|
|
|
--->
PSK31
Phase Shift Keying
|
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
|
WS |
Weak Signal Communication Software
|
|
|
|
|
|
|
|
|
|
WSJT Home Page by K1JT |
|
|
|
|
|
|
|
|
|
--> - WSJT -
Browse Files at SourceForge.net |
|
|
|
|
|
|
|
|
WSJT |
WSJT
JT65 Weak Signal
Communication Software by K1JT |
WSJT Benutzerhandbuch |
http://www.pe2pe.com/images/
WSJT_User_600_German.pdf |
|
|
---> IC-9700
und Nutzung WTSJ-X, FT8
25.10.22, mkn |
|
|
|
|
|
|
|
|

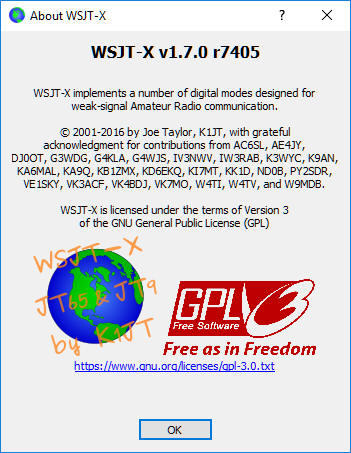

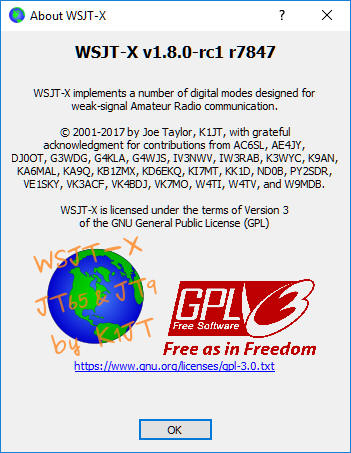

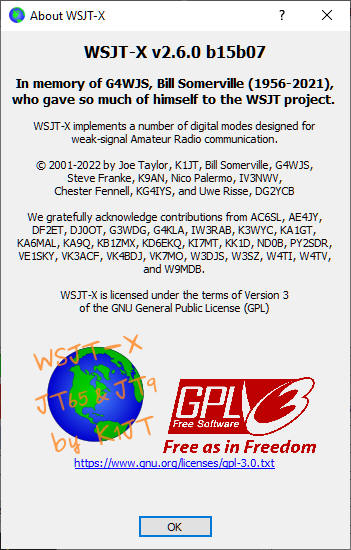

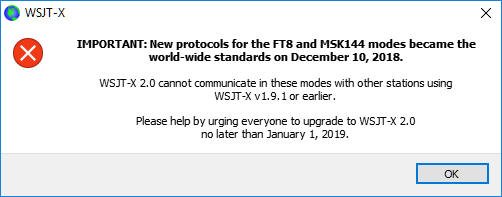

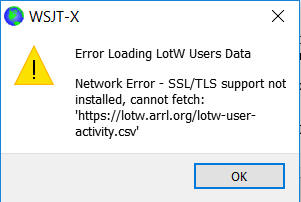

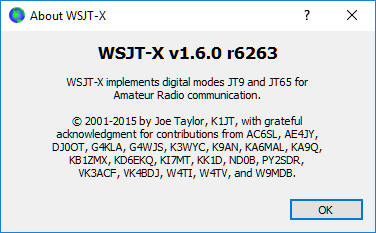

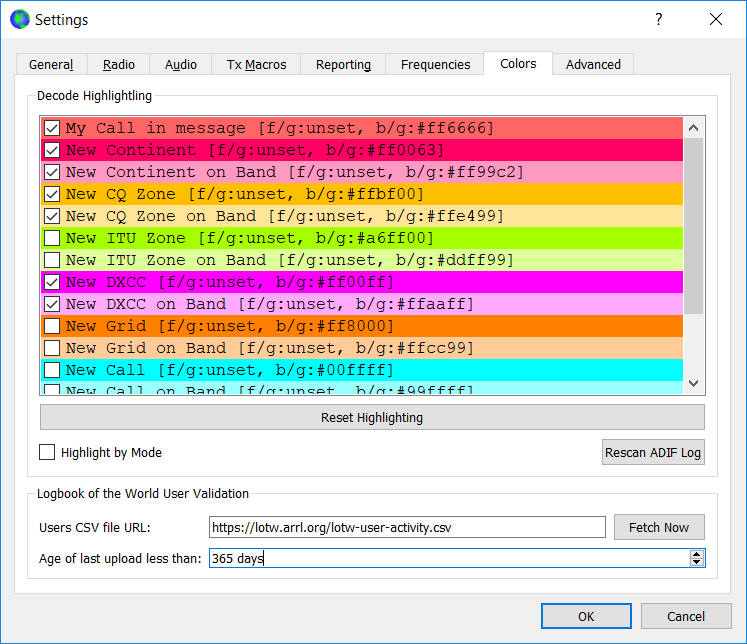

WSJT-X |
WSJT-X
JT4, JT9, JT65, QRA64,
ISCAT, MSK144, FT8 and WSPR
https://sourceforge.net/projects/wsjt/
|
 |
|
|
|
Dial Frequenz = VFO
Bandbreite der SSB-Filter, an den
Durchlassgrenzen Einfluß auf Empfindlichkeit und
Sender-Ausgangsleistung beachten
Dekodierung überlagerter
Spektren ist durchaus möglich |
 |
|
|
|
Mit FT8 kommt Bewegung in Sachen Betriebsabwicklung
- T
und R-Zyklen=15 sec
- übliche OSO-Dauer 1 1/2 Minuten |
 |
- Release:
WSJT-X Version 1.8.0-rc2,
September 2, 2017, erschienen und
installiert
"Depending on what code revision you upgrade from,
it may be necessary to do a one-time reset of the default
list of suggested operating frequencies.
Go to
*File->Settings->Frequencies*, right click on the table and select
*Reset*. "
- 60-m-Band
zusätzlich eingefügt, 5357 kHz
- Tx-Watch-Dog |
|
|
|
|
|
|
|
Serielle Schnittstelle

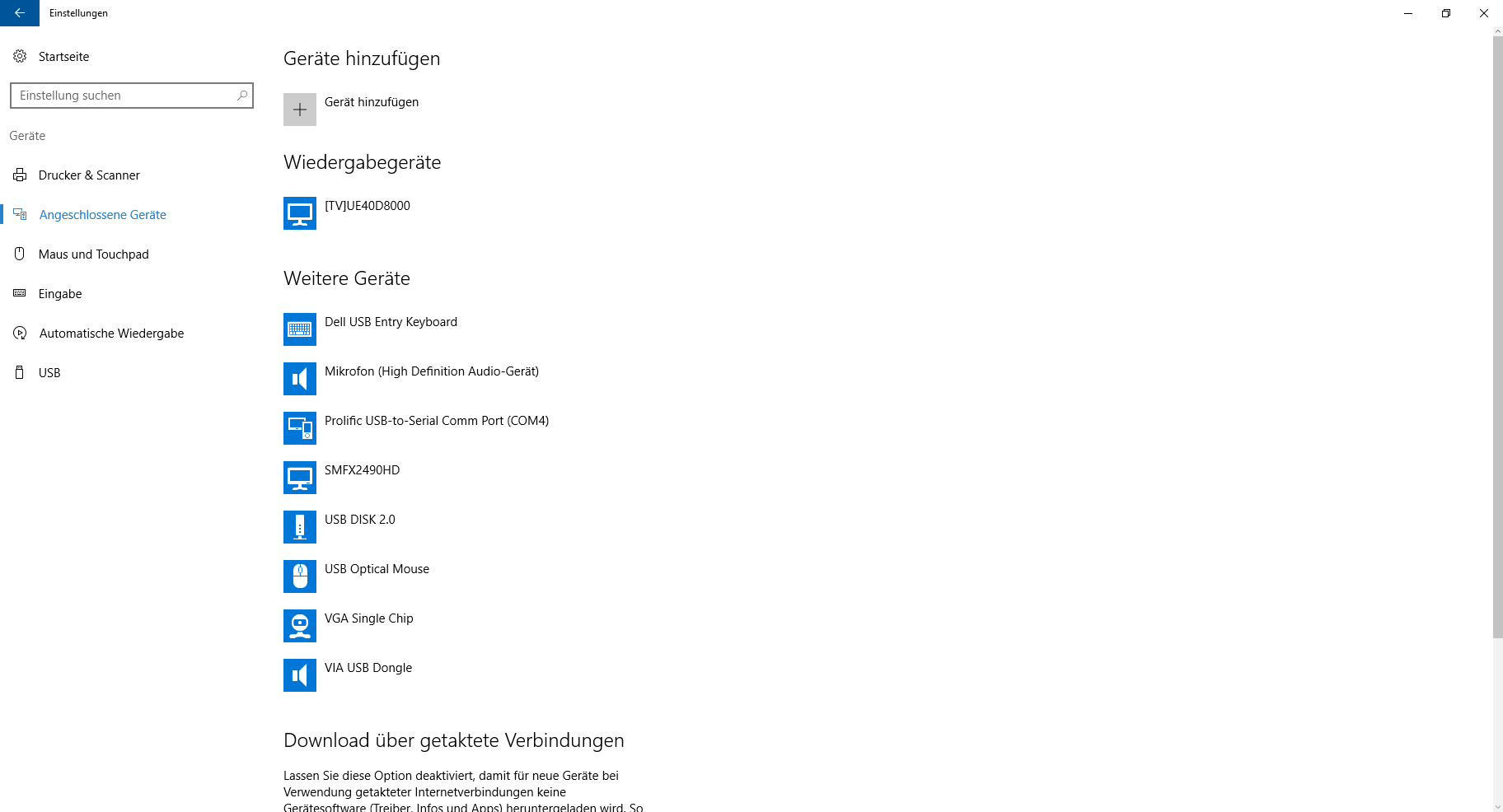

USB-RS232-Adapter unter Windows 10
- Treiberaktualisierung oder Neukauf eines geeigneten
USB-RS-232-Adapters |
 |
|
|
|
|
|
|
|
|

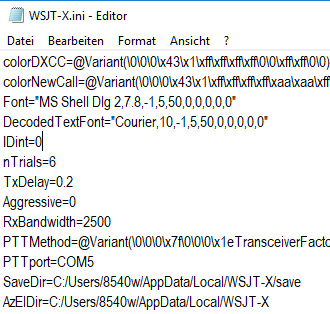

Installation auf Dell 745, Datensatz von Laptop übernommen |
|
|
|
|
 |
|
|
|
|
https://www.physics.princeton.edu/pulsar/K1JT/wsjtx-doc/wsjtx-main-2.0.0.html#INSTALL_WIN
https://slproweb.com/download/Win32OpenSSL_Light-1_0_2q.exe |
 |
|
|
|
Installation auf Dell 745, Datensatz von Laptop übernommen |
|
|
|
|
 |
 |
|
|
|
 |
 |
|
|
|
 |
|
|
|
|
|
|
|
|
2023 |
 |
-
WSJT Home Page (sourceforge.io) |
|
|
|
|
|
|
|
|
|
|
|
|
|
TRX TS430S |
|
|
|
|
SSB USB
Selektivität
- 6 dB: 2,4 kHz
-60 dB:
4,4 KHz
|
|
|
|
|
|
|
|
|
|
max. Ausgangsleistung |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
[08.07.2023, mkn] |
|
|
|
|
|
|
|
|
-
wsjt-x-improved by
DG2YCB - Callsign Lookup by QRZ Ham Radio
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
FT8 [01.10.2017, ..., mkn]
|
Gedanken eines FT-8ler's |
|
|
|
weltweit schnell angenommene Sendeart
angenehme Verkürzung der
QSO-Dauer bezogen auf JT-65
- -24 dB funktionieren |
|
|
|
|
weitere Verkürzung der QSO-Dauer und Betriebsabwicklung
- RRR durch RR73 ersetzen, spart
15 Sekunden
- Verabschiedung mit 73 und QRZ |
oe1sgu_ft8.pdf
|
|
|
|
Pile-up |
Tips for FT8 DXers by Gary Hinson, ZL2IFB |
Sunday, 29 October 2017
160m FT8 - The End Of An Era?
by
VE7SL |
|
|
Splitting bei Anruf |
|
|
|
|
Tx- Splitting und paralleler Anruf zum laufendem QSO |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
FT8 Frequenzen(Dial-QRG)
- Transceiver, SSB,
USB
1,840
MHz
3,573 MHz
5,357 MHz
7,074 MHz
10,136 MHz
14,074
MHz
18,100 MHz
21,074 MHz
24,915 MHz
28,074 MHz
144,174 MHz
432,174 MHz
1296,174 MHz |
Bandpläne der Regionen
checken
-
IARU REGION 1 HF BAND PLAN
-
i-aru-r2
-
Band Plans IARU Region 3
|
CQ in DL, empfohlen
00:15 und 00:45 s Start-Time
WSTJ-X -> TX even/1st nicht
anklicken |
|
|
|
|
|
|
|
aktuell verwendete Version
- WSJT-X Version 1.8.0-rc2, September
2, 2017 |
-
WSJT-X Version 1.8.0-rc2
https://sourceforge.net/projects/wsjt/files/wsjtx-1.8.0-rc2/ |
wsjtx-main-1.7.1-devel.html
wsjtx-main-1.8.0_en.pdf |
|
|
|
|
|
|
|
All.text - Protokoll der detektierten und getätigten
Sendungen [09.10.2017, ..., mkn]
|
|
|
|
|
- Windows 10
- Datei im Verzeichnis
C:/Users/PC-Name/AppData/Local/WSJT-X
|
150515 -3 -0.3 1485 ~ CQ F5MA JN08
150515 -1 -0.2 1741 ~ CQ R7KAZ KN74
170929_150530 Transmitting 7.074 MHz FT8: F5MA DL7UKM JO62
150545 -16 -0.9 191 ~ MX0ADJ F1USE JN08
150545 -13 0.3 965 ~
ON3SB G3YSK IO91
150545 -2 -0.1 1179 ~ VK3AMP OH5RM KP30
150545 3 1.5 1218 ~ VK3AMP I0TPU JN61
150545 2 0.3 1286 ~ CQ
YO8RSL KN37
150545 -2 -0.2 1527 ~ JM1VDM R3KAB LN09
150545 7
-0.2 1595 ~ DC6KI PA1NS JO21
150545 1 -0.2 1741 ~ CQ R7KAZ KN74
150545 -14 -0.3 1870 ~ JH1FNS RK9UE R-14
150545 -9
-0.4 1485 ~ DL7UKM F5MA +05
170929_150600 Transmitting 7.074 MHz
FT8: F5MA DL7UKM R-09
150615 -4 -0.3 1484 ~
DL7UKM F5MA RRR
150615 -16 -0.5 191 ~ MX0ADJ F1USE JN08
150615 -6 -1.4 764 ~ CQ ON3SB JO20
150615 -2 -0.1 1179 ~
VK3AMP OH5RM KP30
150615 1 0.3 1286 ~ CQ YO8RSL KN37
150615
-2 -0.2 1527 ~ JM1VDM R3KAB R-17
150615 7 0.8 1660 ~ CQ YO6GLT
KN36
150615 -4 -0.2 1741 ~ CQ R7KAZ KN74
150615 -15 -0.2
1871 ~ JH1FNS RK9UE R-14
150615 -16 1.4 764 ~ ON3SB DJ0JG JN37
170929_150630 Transmitting 7.074 MHz FT8: F5MA DL7UKM 73
150645 0 -0.3 1485 ~ DL7UKM F5MA 73 |
FT-8 QSO mit F5MA
- Datum_Start
Aussendung Transmitting QRG Sendeart: Call1 Call2 QTH von Call2
- hier könnte auch
RR73 zum Einsatz kommen, würde 15 Sekunden sparen, aber der
höflichkeitshalber verabschiedet sich der Angerufene zuletzt.
- Verabschiedung
- 90 Sekunden,
geschafft |
|
|
[06.11.2022] |
|
|
|
|
- "The
FT4 and FT8 Communication Protocols" by Steve Franke, K9AN Bill
Somerville, G4WJS Joe Taylor, K1JT
QEX, July/August
2020. pp. 3-13 |
|
|
|
- WSJTX
main@WSJTX.groups.io |
|
|
|
|
- Digitale Betriebsarten im
Detail: FT8
|
|
|
|
|
-
FT8 in Theorie und Praxis by Norbert Autengruber OE4NAU und
Andreas Karner OE3ANU, Nov. 2017
|
|
|
|
|
-
ft8_dk2ft.pdf
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
FT8 Digital Mode Club
founded 12.July 2017 by Jo Engelbrecht, OE4VIE and Hannes
Grünsteidl, OE1SGU (OE3SGU) |
|
|
|
|
UltimateAAC
http://www.epc-mc.eu/ |
- Beantragung von Awards
- Hochladen des
eigenen ADIF-Log-Files |
|
|
|
|
|
|
|
|
|
|
|
WSPR
|
WSPR |
|
|
|
|
|
|
|
|
|
- WSPR
Desktop Transmitter Documentation page by
RF | ZachTek |
|
|
|
|
|
|
|
|
|
|
|
|
|
WSPRnet |
WSPRnet Weak Signal Propagation Reporter Network |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
WSJT - FSK Meteorscatter by K1JT |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

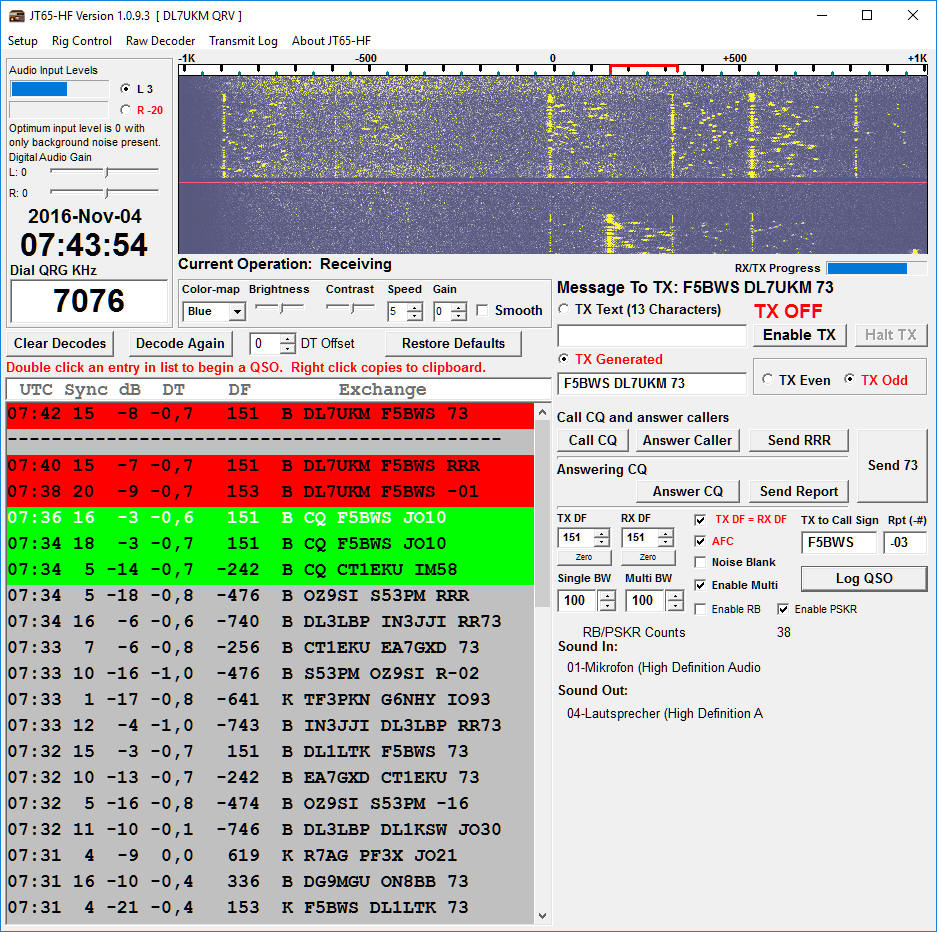

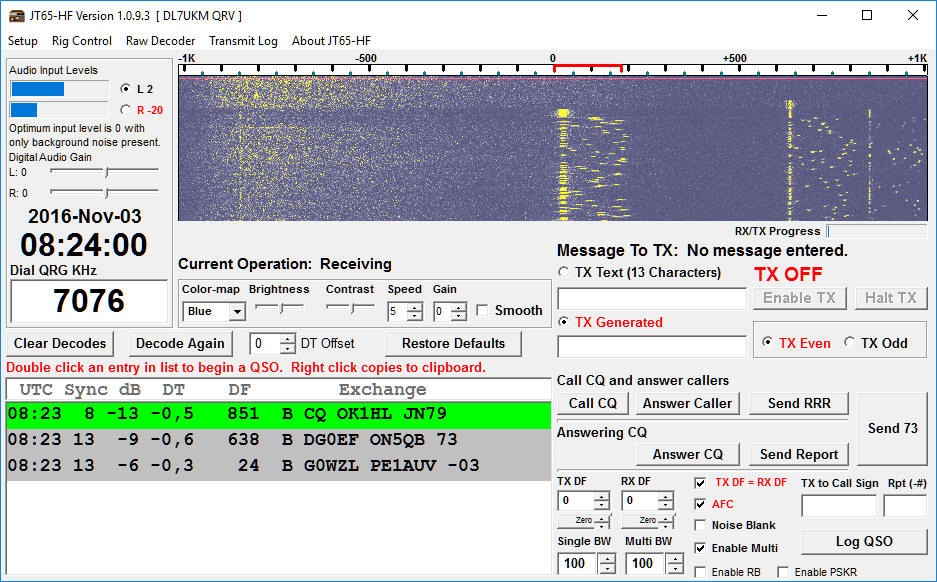

JT65A |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
17. Sept. 2013,
mkn
Angeregt durch DF8DX's
EME-Vortrag auf der 58.
UKW-Tagung in Bensheim, erste Erfahrungen gesammelt, Software: JT65-HF,
14076 kHz, USB, 5 W an Dipol, Geduld und Zeit sind gefragt,
Pegel-Anpassung(im besonderen NF-Ausgangspegel des TRCV) |

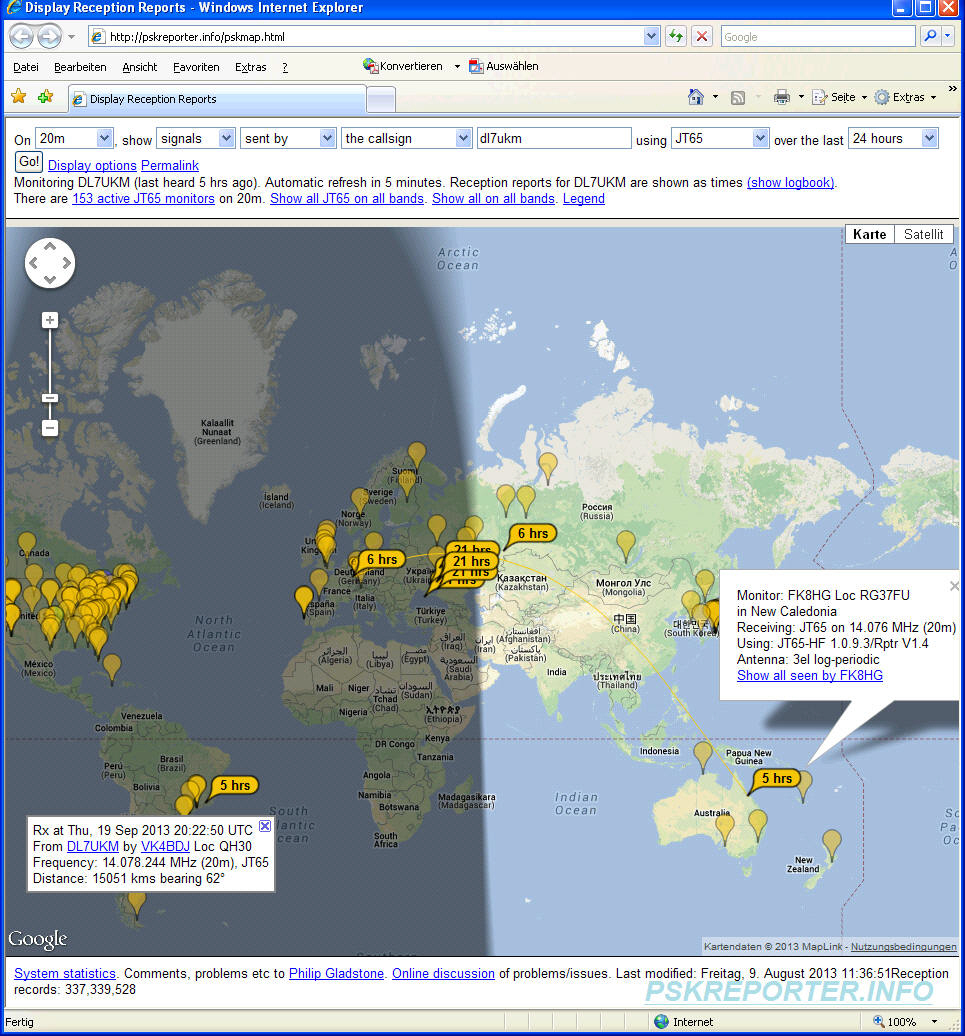

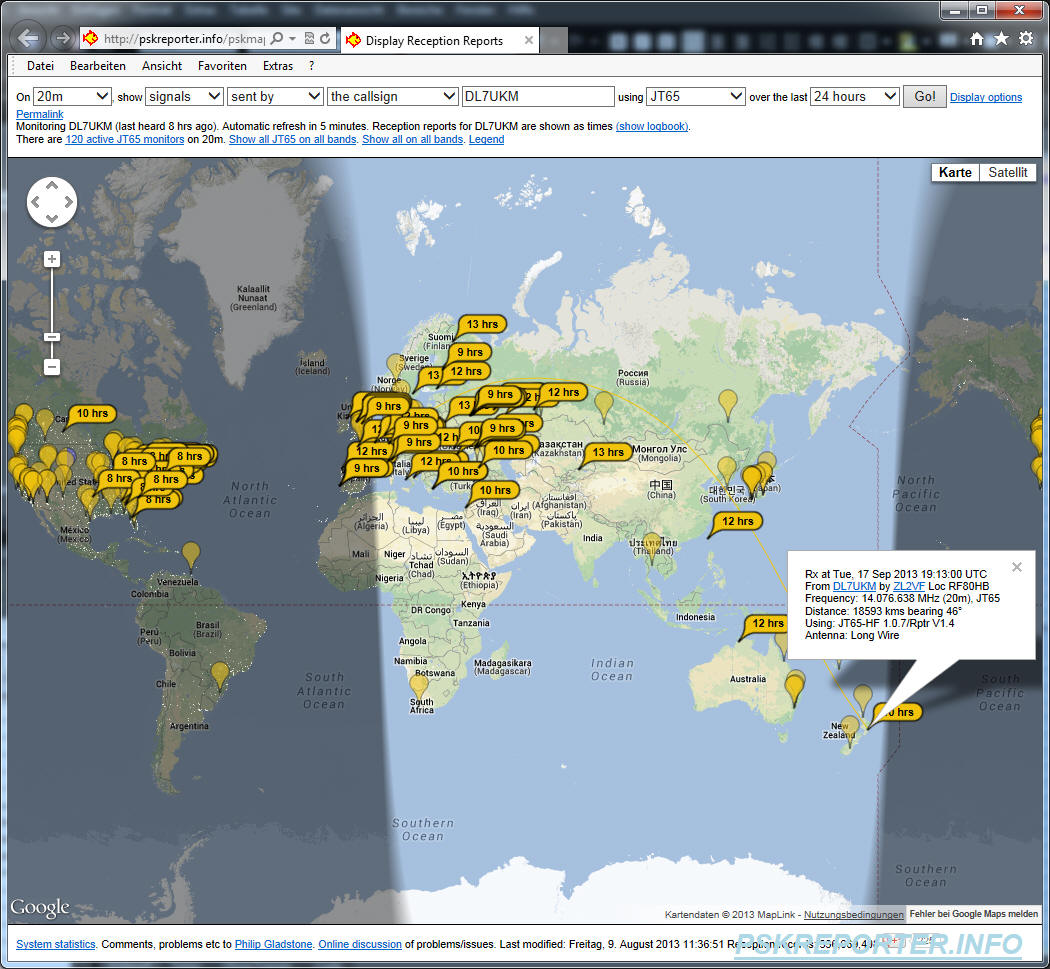

PSK Automatic Propagation Reporter |
man
wird gehört,
eider nicht all diese Stationen gearbeitet ;-) |
|
|
|
|
 |
|
|
-
Open Source Soft-Decision Decoder for the JT65 (63,12) Reed-Solomon
Code, QEX-2016 by Steven J. Franke, K9AN and Joseph H. Taylor,
K1JT |
|
|
|
|
|
|
|
|
|
JT65 — The “Musical” Mode by Steve Ford, WB8IMY |
|
|
|
|
JT65_HF_LookUp |
|
|
|
|
Homepage S06 JT65-HF-comfort |
|
|
|
|
DL2EDF:DL2EDF Vortrag über JT65-HF Verbindungsablauf, ...,
2013
DL2EDF: Digitale Kommunikation mit JT65 und JT9 über Kurzwelle mit
WSJT-X, 2015 |
|
|
|
G4ILO's Blog A JT65-HF update |
|
|
| |
JT65: Mit 20 Watt nach Australien |
|
|
|
|
http://jt65-dx.com/ |
|
|
|
|
"September
2016 Meine Erfahrungen mit JT65 Software JT65HF JT65HF HB9HQX WSJT-X
(JTDX UA3DJY)" by DD6EX |
|
|
|
|
|
|
|
|
|
|
|
|
|
JT65 Frequenzen
- Transceiver, SSB, USB
1,838
MHz
3,576 MHz
5,357 MHz
7,076 MHz
10,139 MHz
14,076
MHz
18,102 MHz
21,076 MHz
24,917 MHz
28,076 MHz
50,276 MHz
144,489 MHz |
|
|
|
|
|
|
|
|
|
JT9 Frequenzversatz +2 kHz, Bandbreite TRX beachten |
|
|
|
|
FT8 |
|
|
|
|
Operation |
|
|
|
|
Texte |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
CQ -> QRZ |
|
|
|
|
CQ NA R6WA |
|
|
|
|
RR HNY TU73 |
|
|
|
|
RR20W DIP73 |
|
|
|
|
|
|
|
|
|
1W DOUBLET |
|
|
|
|
SRI NODECODE |
|
|
|
|
SRI NO DECODE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Zeitsynchronisation des PC |
|
|
|
|
|
|
|
|
"Internetzeitsynchronisierung" oder besser Zeitsynchronisation
des Rechners via
Internet |
|
|
|
|
|
|
|
|
Windows 7 Prof, 64
Bit, eigene Bordmittel
Nutzen des Zeitservices unter Windows 7 - Rechenzentrum -
Universität Osnabrück |
|
|
|
Windows Zeit-/Datumsabgleich konfigurieren (Deutsche Server) by
WinFAQ |
|
|
|
|
|
|
|
|

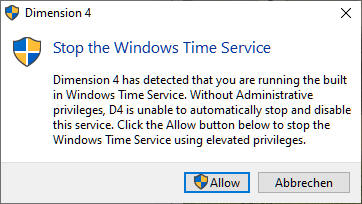

Achtung, bei Verwendung externer Programme zur Zeitsynchonisation
die windowseigenen Mittel deaktivieren! |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
-->

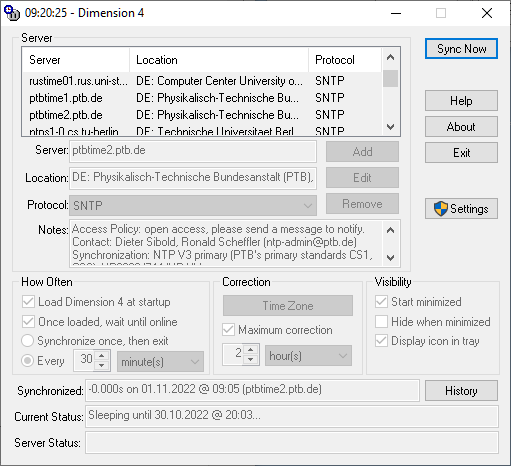

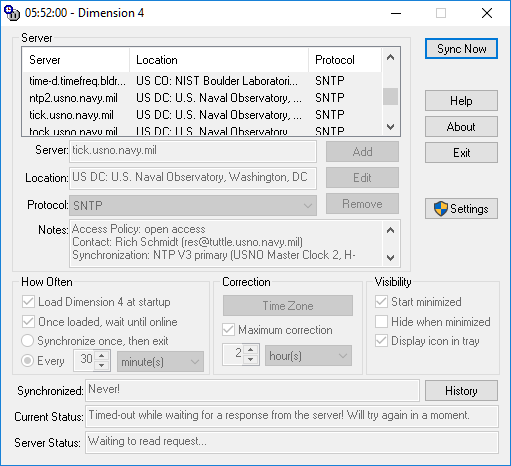

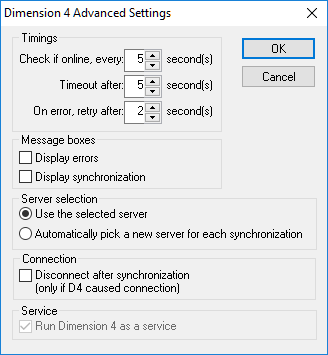

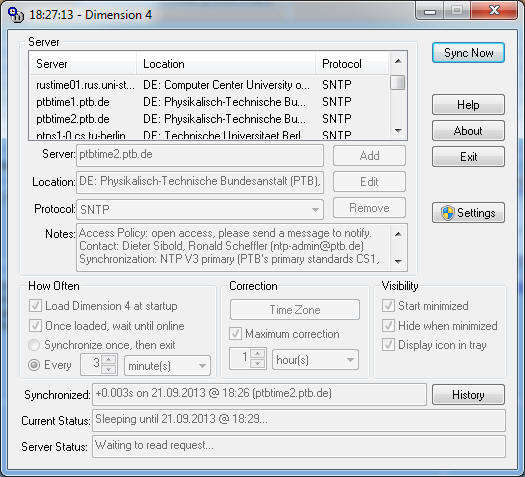

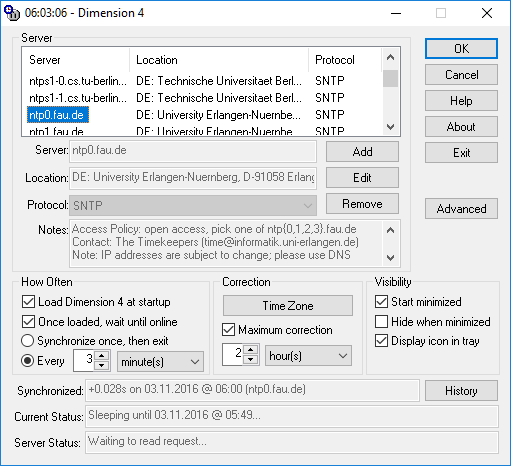

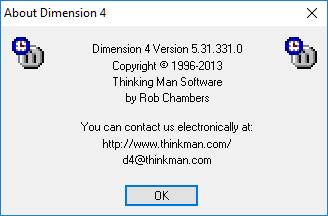

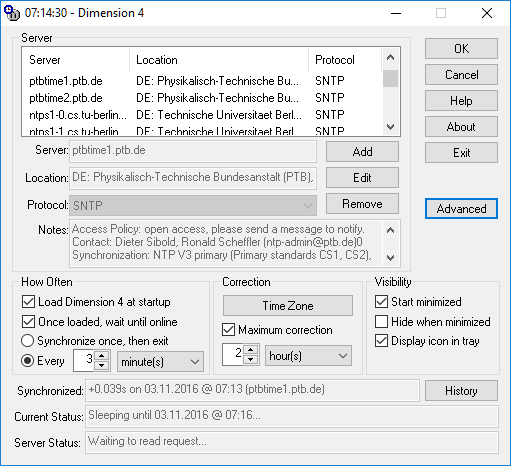

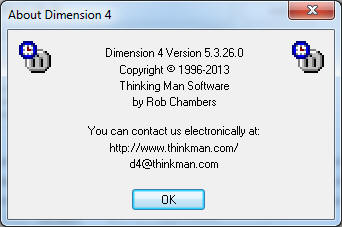

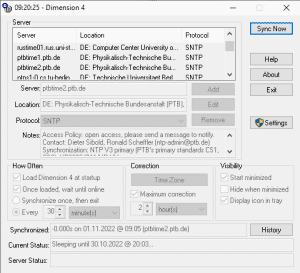

Dimension 4
 |
 |
|
|
|
|
|
|
|
|
 01.11.2022 |
|
|
|
|
 |
 |
|
|
|
03.11.2016
PC-OS: Windows 10 Prof, 64 Bit
 |
|
 |
|
|
 |
|
|
|
 Gewählt: 30 Minuten, 01.11.2022
|
|
|
|
 |
Select: Use the selected server |
|
|
|
|
|
|
|
|
|
|
|
|
|
Meinberg NTP software |
|
|
|
|
TimeSynchTool
NetTime |
|
|
|
|
|
|
|
|
|
|
|
|
|
|

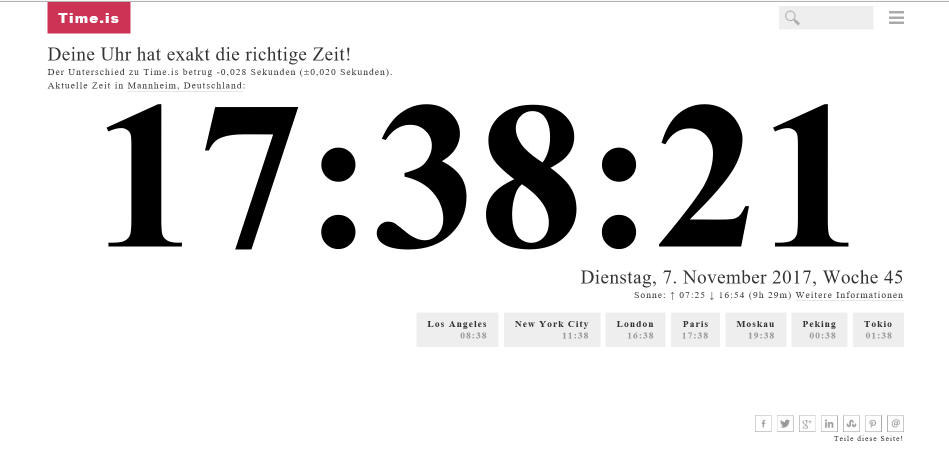

time.is Wie genau ist die
Zeit auf dem PC? |
 |
|
|
|
|
|
|
Programme
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
WSJT-X
JT4, JT9, JT65, QRA64, ISCAT,
MSK144, FT8 and WSPR, das Original |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

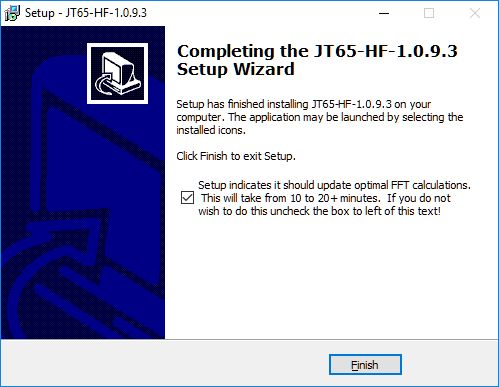

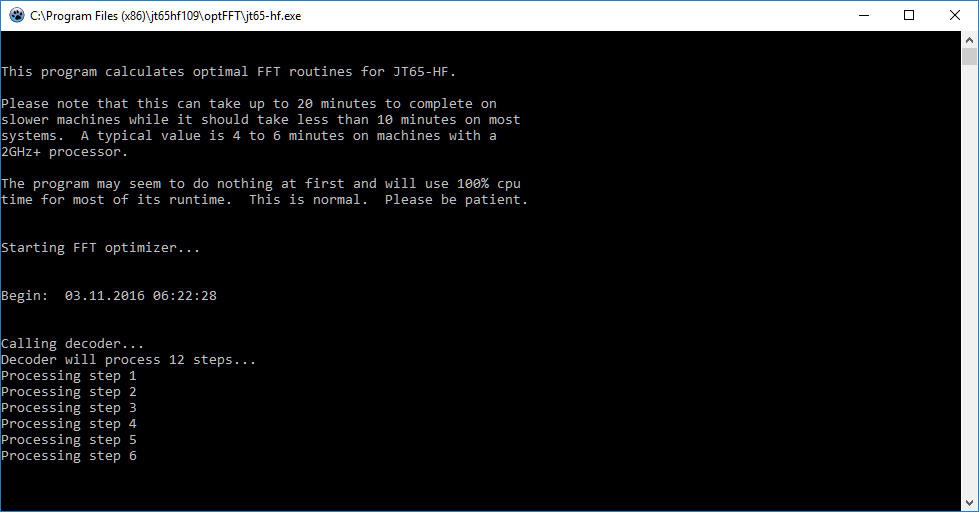

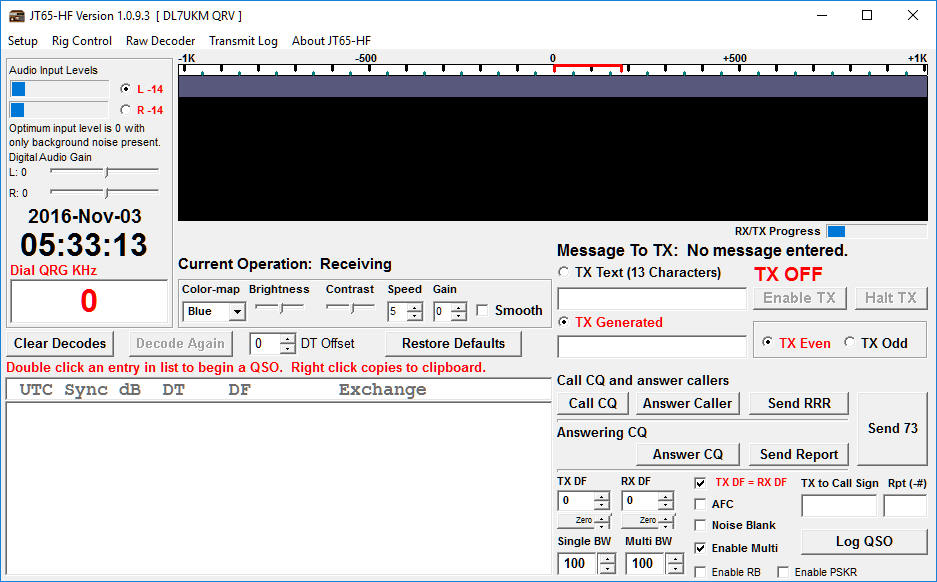

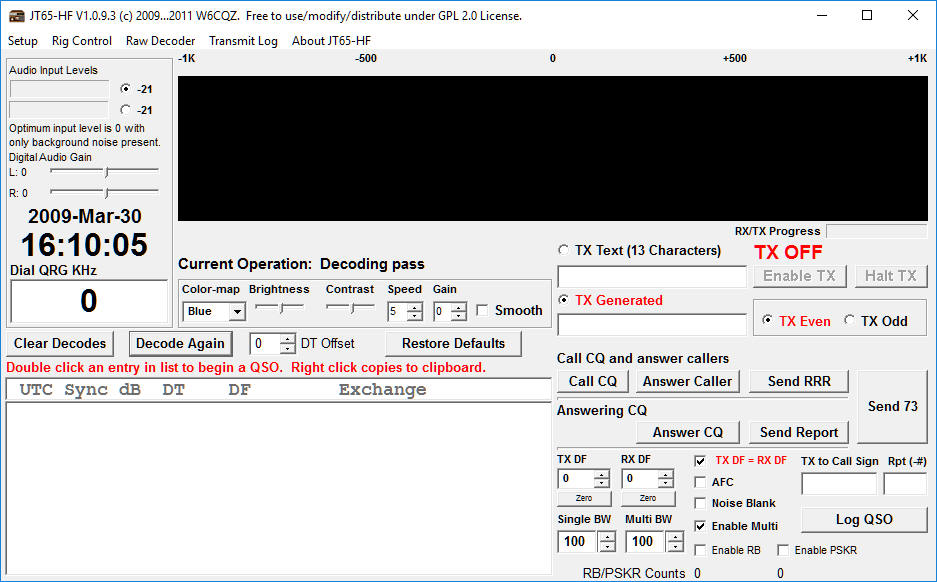

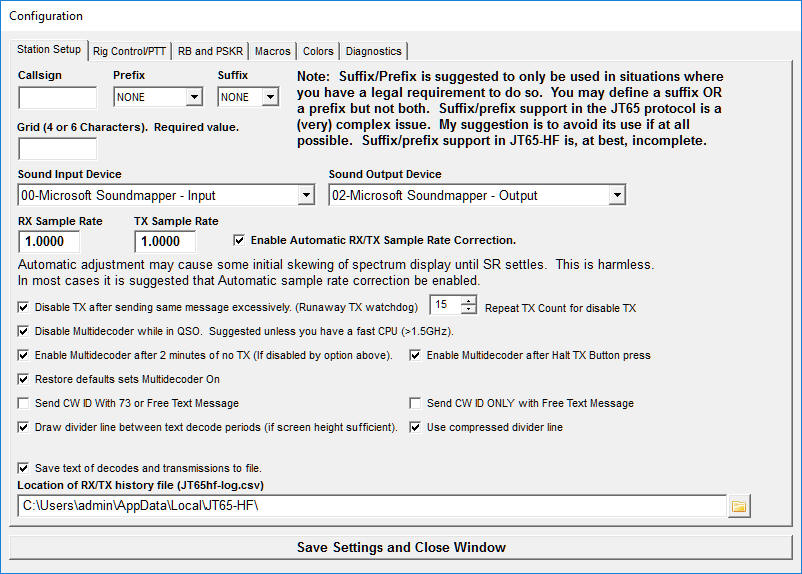

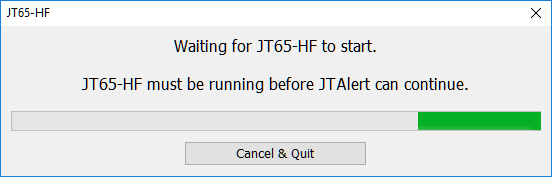

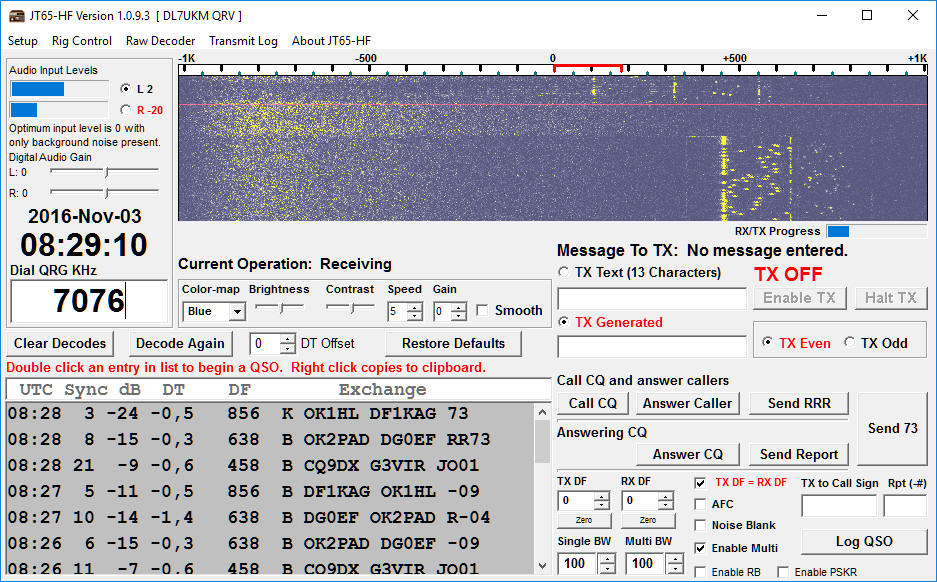

Installation JT65-HF by J. C. Large – W6CQZ |
|
|
|
|
 |
JT65-HF Setup and Operations Guide
jt65hf-109-addendum.pdf
https://openhpsdr.org/wiki/images/0/0c/Jt65-hf-setup.pdf
JT65-HF Operator's Guide - ve3bux.com |
http://www.arrl.org/
files/file/Morse/Archive/15%20WPM/160413_15.txt |
| |
 |
|
|
| |
 |
| |
 |
|
| |

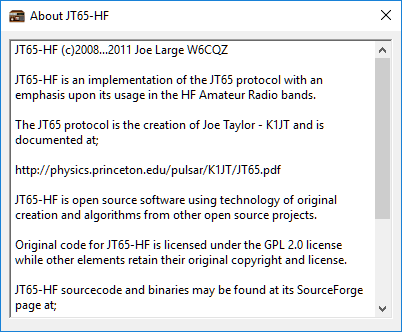

"JT65-HF (c)2008...2011 Joe Large W6CQZ
JT65-HF is an
implementation of the JT65 protocol with an
emphasis upon its
usage in the HF Amateur Radio bands.
The JT65 protocol is the
creation of Joe Taylor - K1JT and is documented at;
http://physics.princeton.edu/pulsar/K1JT/JT65.pdf
JT65-HF
is open source software using technology of original creation and
algorithms from other open source projects.
Original code for
JT65-HF is licensed under the GPL 2.0 license while other elements
retain their original copyright and license.
JT65-HF
sourcecode and binaries may be found at its SourceForge page at;
https://sourceforge.net/projects/jt65-hf/
Support may be
found at;
http://groups.google.com/group/jt65-hf/
73 - Joe - W6CQZ" |
|
| |
|
|
| |
 |
|
| |
 |
|
| |
 SSB, USB |
|
| |
 |
|
| |
 |
|
| |
|
|
|
| |
http://nw7us.us/jt65a.html |
http://nw7us.us/jt65a/2010_10_JT65A-Part-1_Compressed.pdf |
|
| |
|
http://nw7us.us/jt65a/2010_11_JT65A-Part-2_Compressed.pdf |
|
| |
|
|
|
| |
======================================================== |
|
|
| |
|
|
|
| |

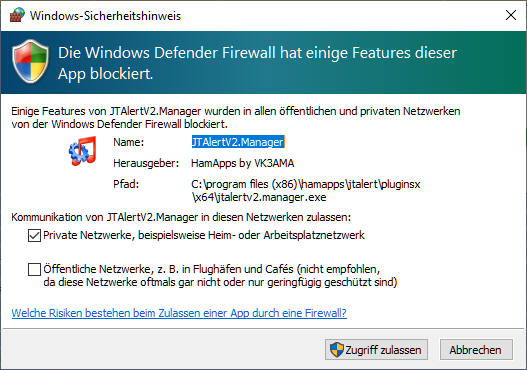

JTAlert Audio and Visual alerts for WSJT-X
& JTDX
|
|
|
| |
|
|
|
| 2016 |
JT-Utilities.
Useful helper
applications for JT65-HF & WSJT-X
- JTAlert 2.8.4
- HamApps Callsign Database v2016.10.12
- HamApps Sounds v2.5.0
|
|
|
| |
|
|
|
| |
 |
|
|
| |
|
|
|
| 2023 |

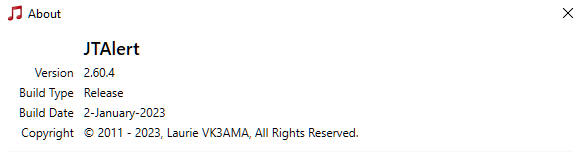

JTAlert 2.60.4 |
|
|
| |
|
|
|
| |
- JTAlert requires the .NET 6 Desktop Runtime |
|
|
| |
- JTAlert 2.60.4 |
|
|
| |
|
|
|
| |
|
|
|
| |
 |
- Zugriff zufgelassen |
| |
 |
|
|
|
|
| |
======================================================== |
|
|
| |
|
|
|
| |
JT65-HF-HB9HQX-Edition |
|
|
| |
|
|
|
| |

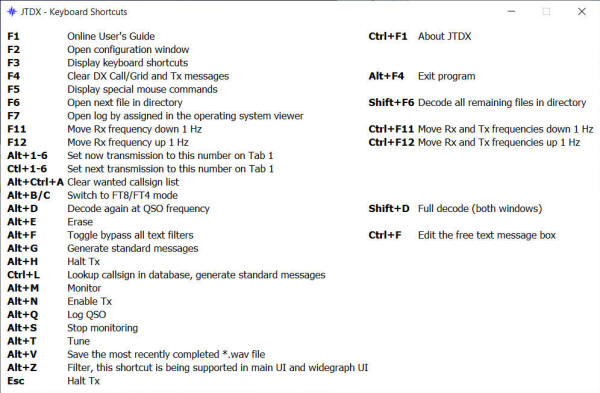

JTDX - HAM
program for HF JT65 and JT9 modes by
UA3DJV
[ Tipps, History, ...] |
|
| |
http://jt65-dx.com/download/wsjtx-ua3djy.html |
|
|
| |
http://jtdx.tech |
|
|
| |
|
|
|
| |
JTDX Yahoo technical group
|
|
|
| |
|
|
|
| |
|
|
|
| |
- JTDX -
Funkamateure Dresden-Land (funkamateure-dresden-ov-s06.de)
"Der Versuch einer Anleitung in deutsch oder Keine Scheu vor FT 8"
by
Matthias, DL3VCO
Beitrag veröffentlicht:23. Januar 2021 |
|
|
| |
|
|
|
| |
|
|
|
| |
2023 |
[07.07.2023, mkn] |
|
| |
|
|
|
| |
|
|
|
| |

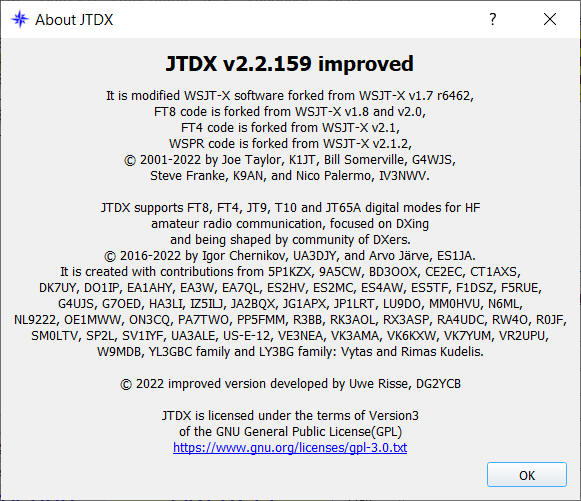

- jtdx_improved
by Uwe Risse, DG2YCB |
|
|
| |
- |
|
|
| |
 |
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
 |
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
|
ROS |
ROS v7.1.9 (Weak signal
Radio Chat) |
Anleitung in Deutsch (ZIP) Übersetzung DM3ML(sk) |
| |
|
|
|
| |
|
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
|
D-STAR |
Digital
Smart Technologies for Amateur
Radio |
|
|
| |
|
|
|
| |
D-STAR System
JARL |
|
|
|
Einführung in
das D-STAR-System by ICOM
Europe |
|
|
| |
Einführung in D-Star by DF4OR |
|
|
|
|
D-STAR users.org |
|
|
|
|
D-STAR INFO |
|
|
|
|
D-STAR by
Taunus Relais Group |
|
|
|
|
D-STAR
by DC7OS |
|
|
|
|
|
|
|
|
|
D-STAR HOT-SPOT
DJ0ABR |
|
|
|
|
D-Star Informatie door PD0BEL |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Digital Mobile
Radio |
|
|
|
|
DMR (Digital
Mobile Radio) DMR ist ein ETSI Standard für digitalen Mobilfunk
C10 |
|
|
|
DMR Links |
|
|
| |
|
|
|
| |
DMR-Repeater DB0IUK A20
TX
438.3375 MHz RX 430.7375 MHz |
|
|
| |
|
|
|
| |
Standard |
|
|
| |
Audio-Codec |
|
|
| |
Internet-Vernetzung |
|
|
| |
Netzwerke |
|
|
| |
|
|
|
| |
https://brandmeister.network |
|
|
| |
http://hose.brandmeister.network -> Live Streaming einzelner
Talkgroups |
|
|
| |
BrandMeister Wiki, für DL
Einsteiger-Info |
|
|
| |
|
|
|
| |
|
|
|
|
|
Trans European Trunked RAdio |
|
|
| |
|
|
|
| |
TETRA-DMO-Umsetzer
DB0MOT Kleiner Feldberg |
QRG: 430,075 MHz, Simplex |
|
| |
HAM-TETRA |
|
|
| |
|
|
|
| |
|
|
|
|
|
|
|
|
|
YAESU System Fusion |
|
|
|
|
`YAESU "The
Dawn of Digital Communications in the Amateur Radio World" |
|
|
|
|
|
|
|
|
|
|
|
|
|
FreeDV |
FreeDV HF Digital Voice for Radio
Amateurs |
DV
Digital Voice |
|
|
|
|
|
|
|
|
Codec 2 |
|
|
|
|
|
|
|
|
|
QRGs: 7190 kHz, 14
236 kHz |
|
|
| |
|
|
|
| WinDRM |
WinDRM - HF Digital Radio Mondiale |
WinDRM Download |
|
| |
HF
Digital Voice Programs Once Again Available for Download 2008,
ARRL |
|
| |
|
|
|
| |
|
|
|
|
|
|
|
| History |
SWDV Short Wave Digital Voice
SWDV †
Ein OFDM Softwaremodem zur Sprach- und Datenübertragung im
Kurzwellen-Bereich für Macs, Win98, WinNT, Win2000 und WinXP über
die PC Soundkarte
|
International Digital Audio Broadcasting Standards:
Voice Coding and
Amateur Radio Applications, QEX January/February 2003, pp. 49-56
by ARRL, 2003
http://www.arrl.org/arrlletter?issue=2002-12-06 |
|
|
|
|
|
|
|
Basics |
|
|
|
|
|
|
|
|
|
|
Agilent AN 1298
Digital Modulation in Communications Systems -
An Introduction
Application Note |
|
|
|
Agilent Technologies
Wireless Test Solutions
Application Note 1313
Testing and Troubleshooting
Digital RF
Communications Transmitter Designs
|
|
|
|
|
|
|
|
|
DSP |
|
|
|
|
|
UniDSP56 |
|
|
|
|
|
|
|
|
|
|
|
|
|
HF Link |
HFLINK is the international resource
for ALE Automatic Link Establishment High Frequency Communications,
... |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
D-ATV Digitales Amateurfunkfernsehen in Reutlingen
|
|
|
|
|
|
|
|
