 This page is still under construction, I am using it as my
online notebook.
It's time to finalize and sort the content on this page, but ...! ;-)
To Do |
|
|
|
|
|
|
|
|
|
|
Icom IC-9700 2m/70cm/23cm-Band ALL MODE
TRANSCEIVER
|
|
|
|
|
|
|
|
|
|
|
|
|
--->
Digital Transmission |
|
WSJT Home
Page (princeton.edu) --->
WSJT Home Page
by K1JT et al. --->

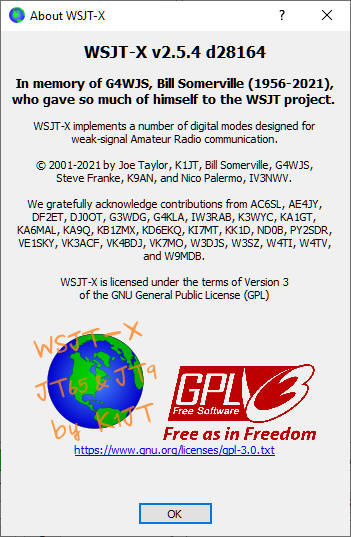

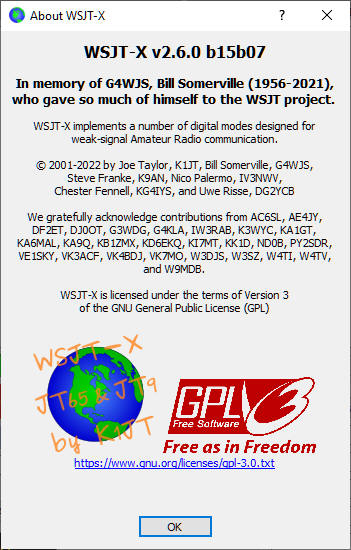

WSJT-X
[05.01.2023] |
|
|
|
|
-
wsjtx-2.6.0-win64.exe later Windows 7
-
wsjtx-main-2.5.0_de.pdf (sourceforge.io) Deutschsprachiges Handbuch,
Übersetzung by OE1EQW
- WSJT -
Browse Files at SourceForge.net
- Updated on 18.01.2023
|
 |
|
|
|
 |
|
 |
|
 |

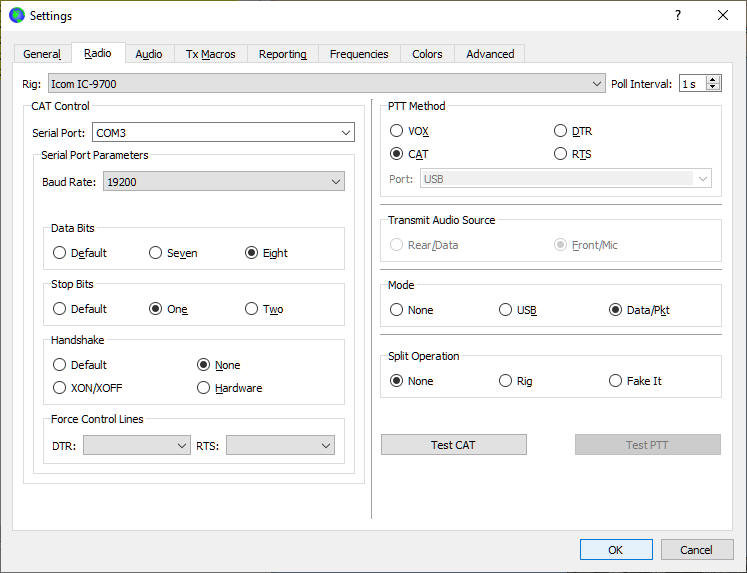

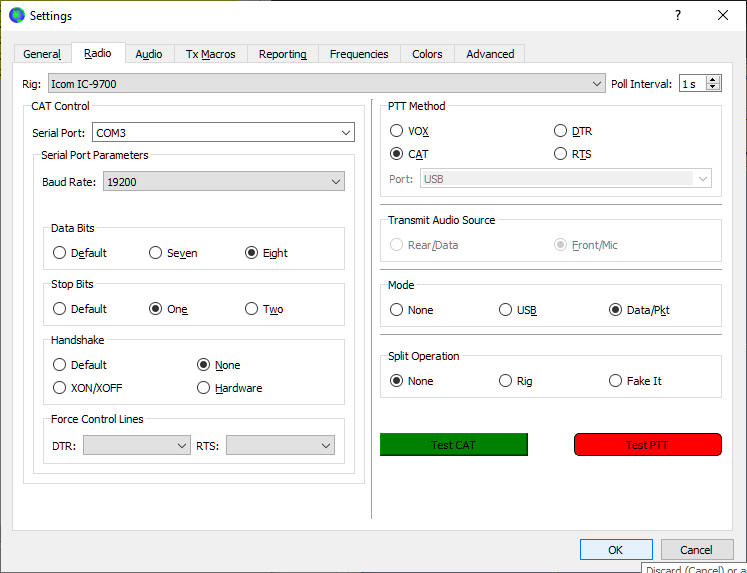

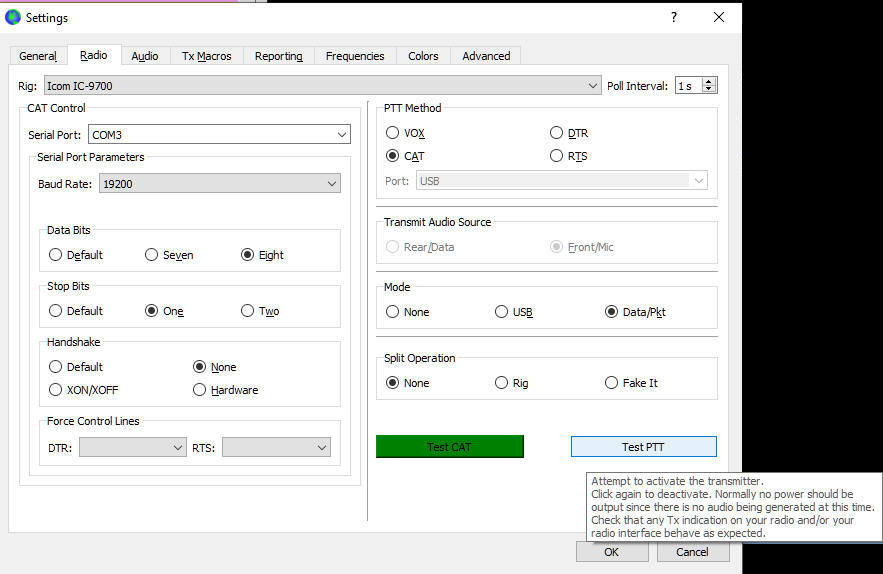

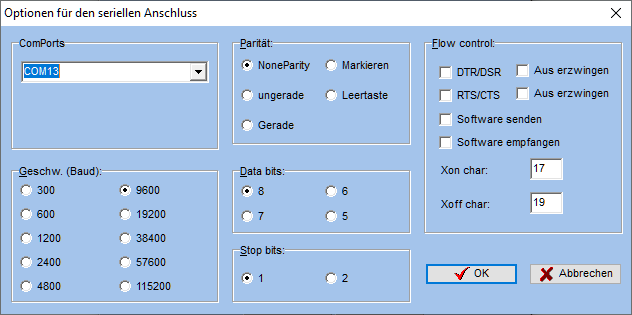

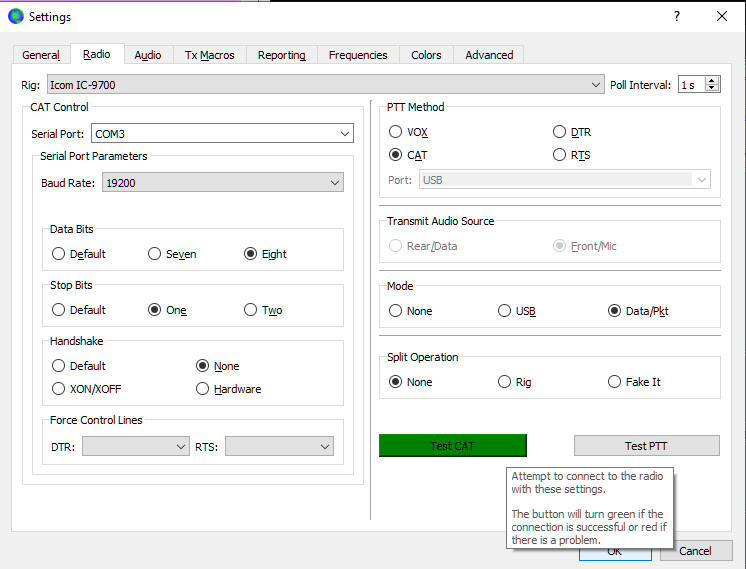

- Baud Rate auf 19200 reduziert! [02.11.2022, mkn] |
 |
|
 |
|
 |
|
 |
|
Wünsche des Programms
- |
|
|
-

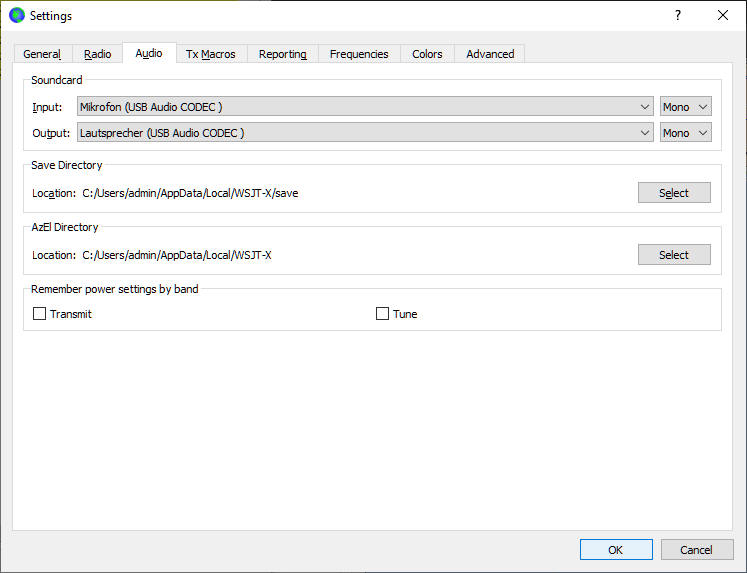

Be sure that your audio device is configured to sample at 48000 Hz, 16
bits. |
Wo wird die Einstellung vorgenommen?
- Soundkarte |
|
|
|
|
- "Windows
7 und höher können Audiogeräte mit dem CODEC der PCM2900-Serie von Texas
Instruments für den Mikrofoneingang anstelle des Line-Eingangs
konfigurieren. (Dieser Chip wird in vielen Funkgeräten mit eingebauten
USB-CODECs sowie verschiedenen anderen Audioschnittstellen verwendet.)
Wenn Sie ein solches Gerät verwenden, stellen Sie sicher, dass Sie den
Mikrofonpegel in den Eigenschaften des Aufnahmegeräts auf 0 dB
einstellen." |
0 dB? |
|
-
|
|
 |
|
|
|
|
|

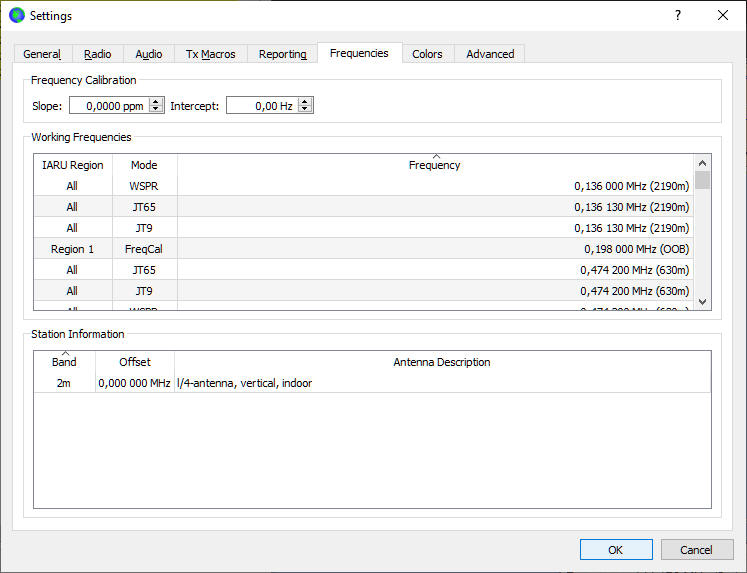

- Zusatzinformation zur verwendeten Antenne unter Frequenz eintragen! |
 |
 |
|
|

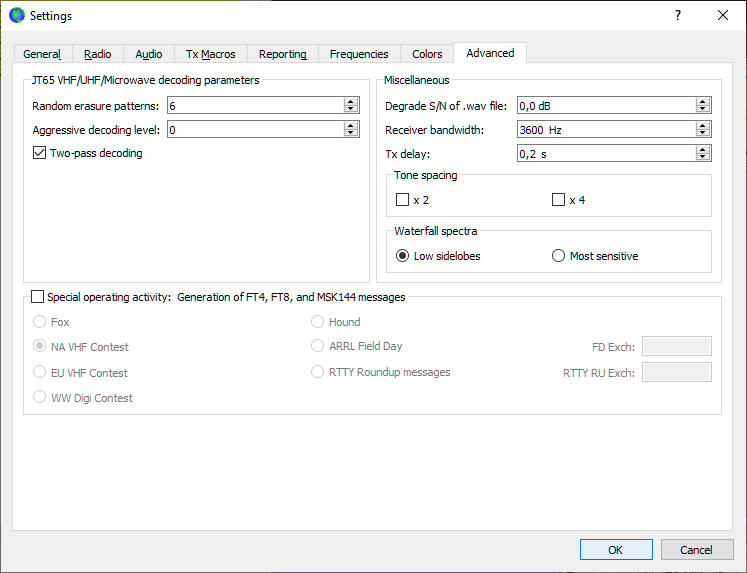

4.8. Advanced -> verwendete RX-Bandbreite anpassen IC-9700 FT8 Preset
3600 Hz |
|
|
|
|
 |
|
|
|
|
|

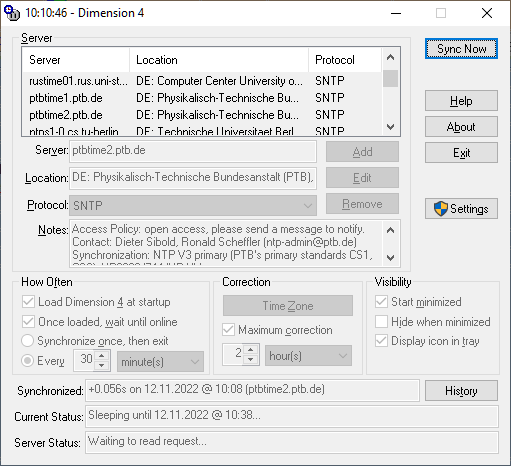

- Time Synchronization |
|
|
|
|
- "The built-in Windows facility for time synchronization is usually not
adequate.
We recommend the program Meinberg NTP Client: see Network
Time Protocol Setup for downloading and installation instructions.
Recent versions of Windows 10 are now shipped with a more capable
Internet time synchronization service that is suitable if configured
appropriately.
We do not recommend SNTP time setting tools or others
that make periodic correction steps, WSJT-X requires that the PC clock
be monotonically increasing and smoothly continuous." |
- https://www.meinberg.de/german/sw/ntp.htm
-
NTP Time Server Monitor |
|
|
|
- Accurate Time
Keeping on your PC using NTP
|
|
- https://support.ntp.org/Main/SoftwareDownloads
time server
|
|
|
|
|
 |
|
|
|
|
|
|
|
 |
Time.is |
|
|
|
|
-
Windows-Zeitdienst: Tools und Einstellungen | Microsoft Learn |
|
-
Zeit-Server (NTP-Server) unter Windows 10 nutzen
-
Rechenzentrum Universität Osnabrück (uni-osnabrueck.de) |
|
|
|
|
|
- 7.3. Auto-Sequencing |
|
"When calling CQ you may also choose to check the box Call 1st.
WSJT-X will
then respond automatically to the first decoded responder to your CQ." |
|
|
|
|
|
|
|
|

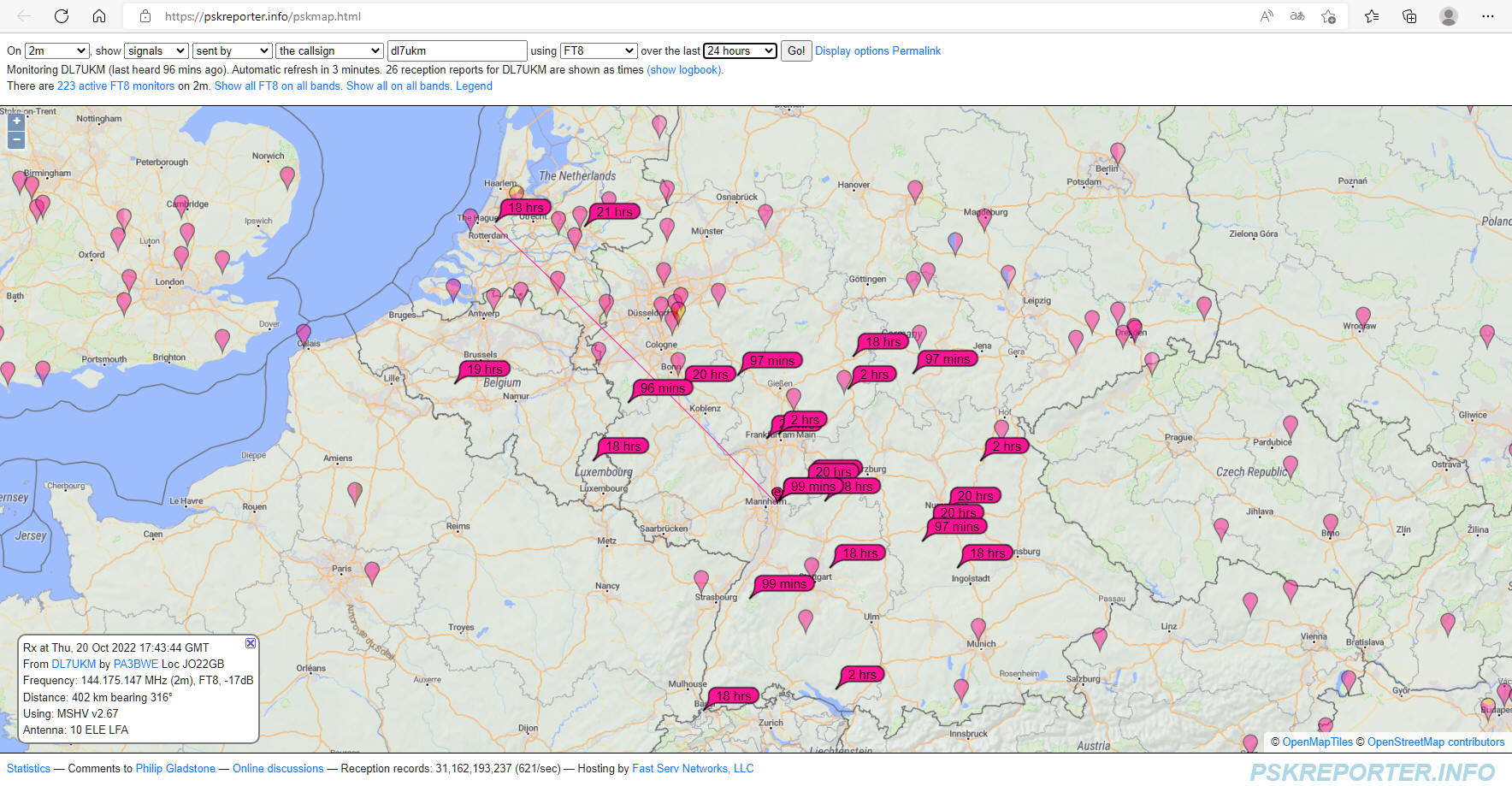

- Display Reception
Reports (pskreporter.info) |
|
|
|
|
 |
Erste Verbindungen im 2-m-Band. 20.-21.10.2022.
Lambda/4-Strahler am Fenster. Pout: 10 W |
|
|
|
|
|
|
|
|
|
=============================================== |
|
|
|
|
-
https://www.w6pql.com/misc/wsjtx_and_the_ic9700.htm
|
|
|
|
|
|
|
|
|
=============================================== |
|
|
|
|
|
|
|
|
|
|
|
- GHB IC-9700: 3-11, 4-8 |
|
|
|
|
|
- "The
FT4 and FT8 Communication Protocols" by Steve Franke, K9AN Bill
Somerville, G4WJS Joe Taylor, K1JT QEX, July/August 2020. pp. 3-13 |
|
|
- 8-tone continuous-phase frequency shift keying (CPFSK) |
kontinuierliche Phase |
|
- 8 Träger, moduliert, 8-FSK, Frequenca-Shift-Keying, Frequenzabstand
6,25 Hz |
CPFSK continuous-phase frequency-shift keying |
|
- plus Gaussian Filter -> GFSK |
GFSK Gaussian frequency-shift keying |
|
|
|
|
|
|
|
- Spitzenleistung, Spitzenspannung geteilt durch 8? |
|
- WSJTX main@WSJTX.groups.io
|
|
|
|
|
-
ALC and IC-7300, about talk-power and modifications - klop.solutions
|
|
|
|
|
|
|
|
|
|
|
|
-FT8
- ALC korrekt einstellen für ein sauberes Signal (dk9jc.de) |
|
|
|
|
|
|
|
|
=============================================== |
|
|
|
|
-
GM4FVM's radio world: Multiple instances of WSJT-X - using more than one
radio, or two data streams on the IC-9700
Friday,
19 February 2021 |
|
|
|
|
|
|
|
|
=============================================== |
|
|
|
|
|
=============================================== |
|
|
|
|
 |
|
|
|
|
|
=============================================== |
|
|
|
|
|
|
|

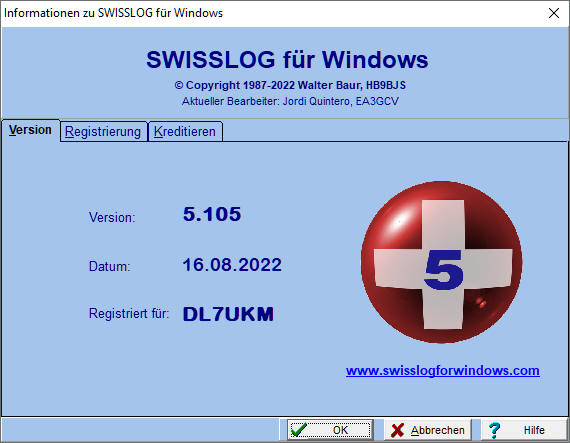

- Swisslog
Ham Radio Logging Software (swisslogforwindows.com)
-
Download
Swisslog
-
Swisslog's
Forum (swisslogforwindows.com) |
 |
|

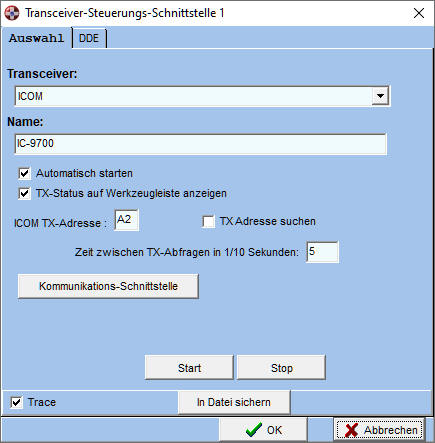

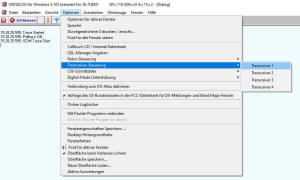

- Optionen -> Transceiversteuerung |
|
|
|
|
|
|
 |
|
|
|
|
 |
- 21.10.22
Eigenständige Nutzung funktioniert noch nicht?
|
 |
|
|
Nach Start |
|
 |
|
|
|
|
 |
|
|
|
|
--->
|
|

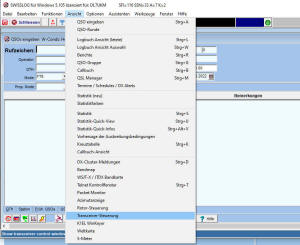

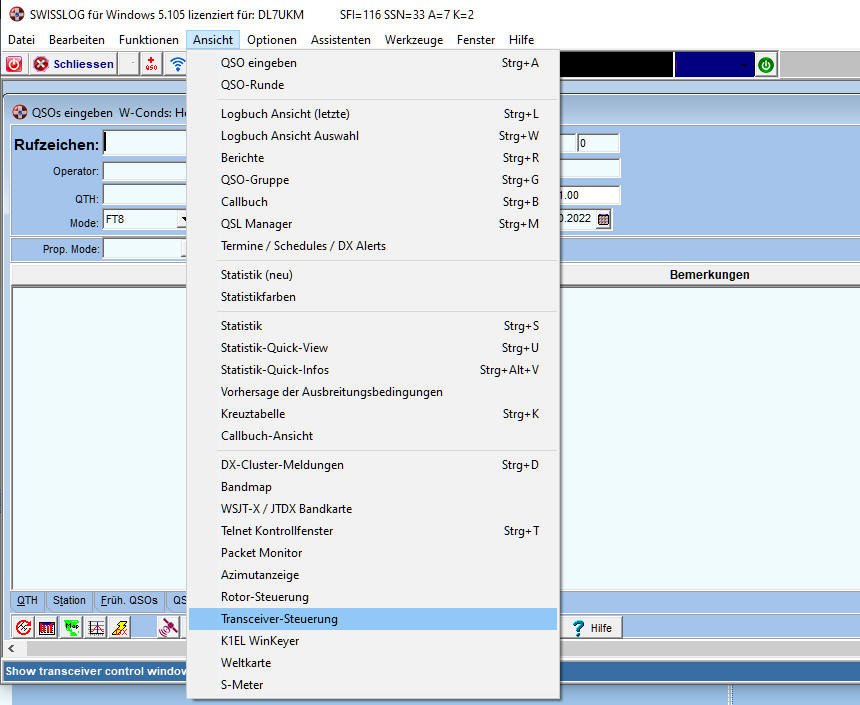

- Nochmals die Transceiver-Steuerung studieren 22.10.22
|
|
|
-
Transceiversteuerung |
|
|
|
|
|

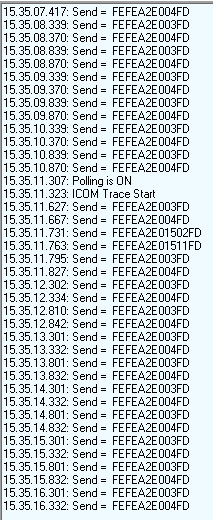

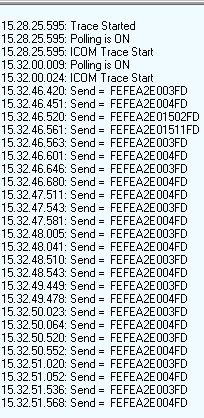

-> Fehlersuche |
|
|
|
|
|
|
|
|
-
Swisslog's Forum - Search Results (swisslogforwindows.com) |
|
|

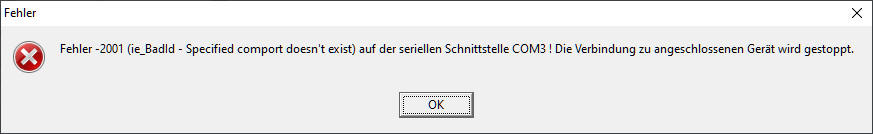

- Fehlermeldung: definierter COM-Port existiert nicht, TRX OFF |
|
 |
|
|
|
|
|
|
|
|
|
|
|
=============================================== |
|
|
|
|
|
|
|
|
|
|
|

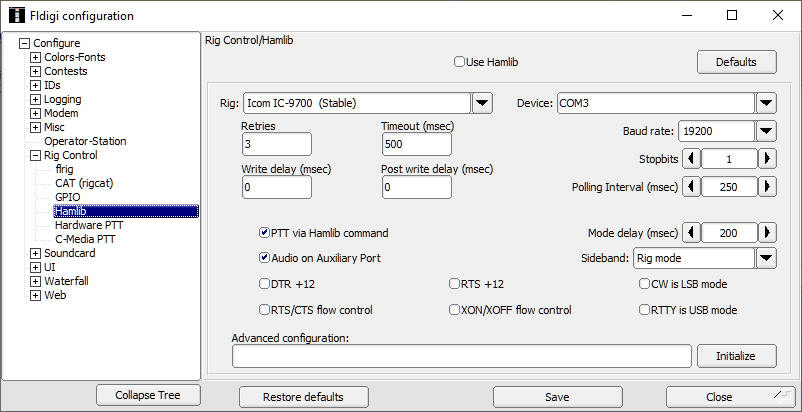

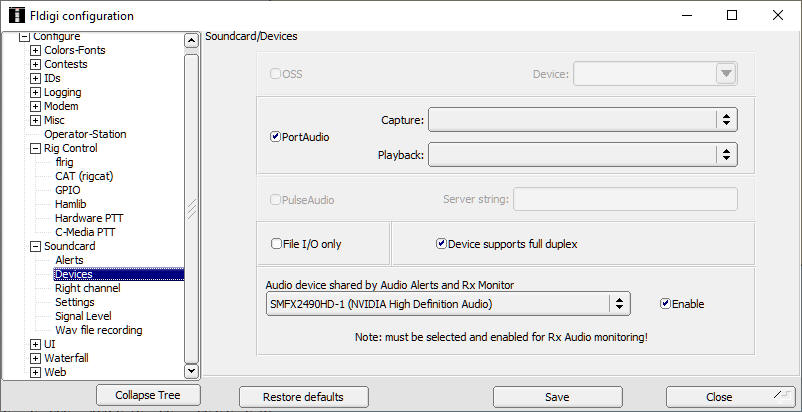

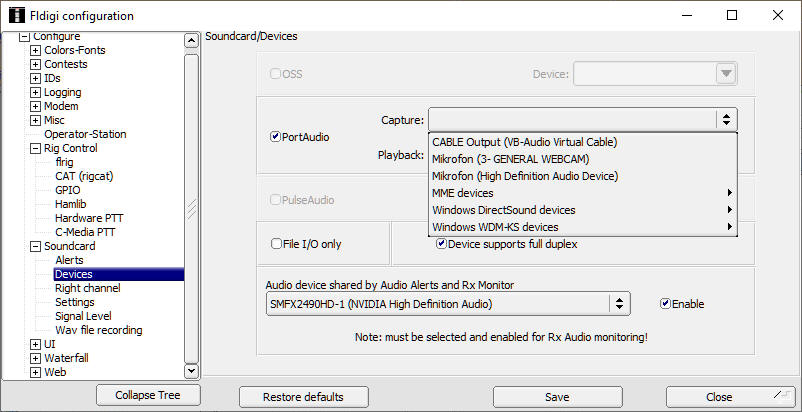

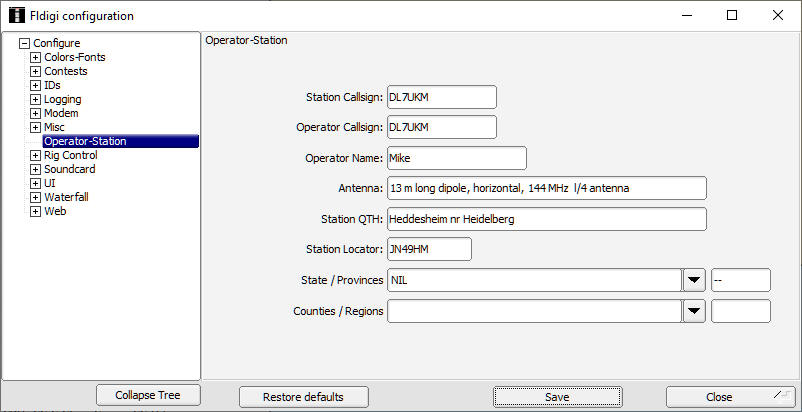

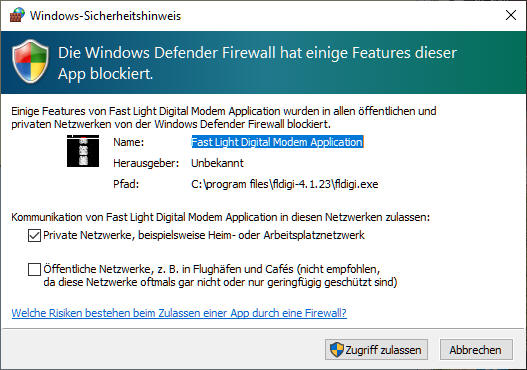

- fldigi |
|
|
|
|
 |
|
 |
|
|
|
|
 |
|
 |

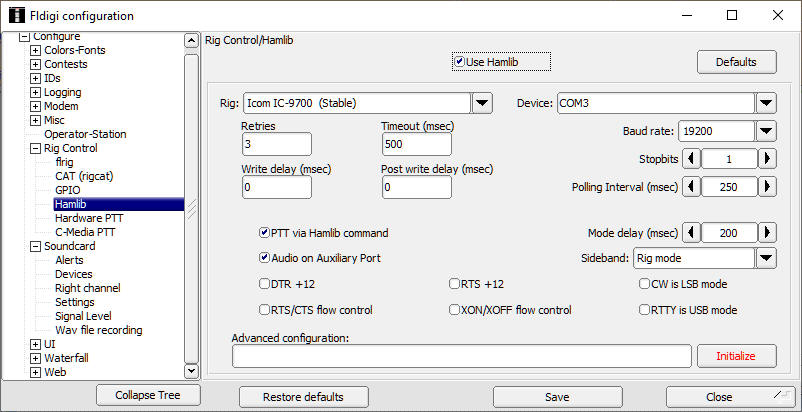

Use Hamlib aktivieren!
Audio on Auxilary Port aktivieren? |
 |
|
|
|
|
 |

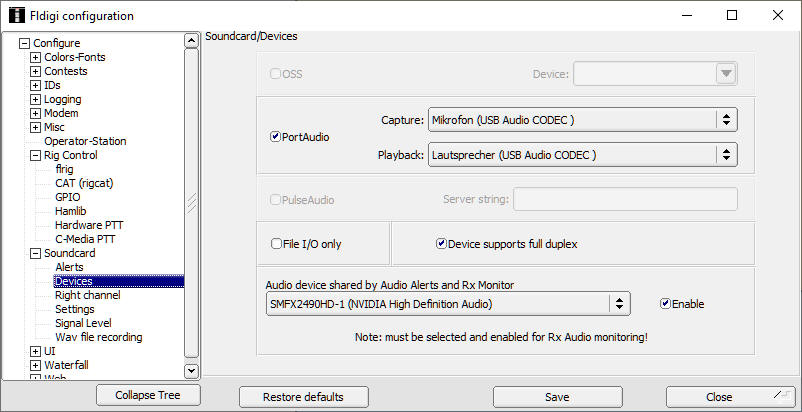

USB Audio Codec? |
 |
- Sequenz beachten?
TRX ON
Start fldigi |
|
|
|
|
|
|
|
=============================================== |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
- 144,138 MHz Bandplan |
|
|
|
|
|
- PRESET FT8 |
|
|
|
|
- https://groups.io/g/winfldigi
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
